randolf::rsocket Class Reference

This rsocket class provides an easy-to-use and thoroughy-implemented object-oriented socket I/O interface for C++, intended to make socket I/O programming (with or without TLS encryption) easier and more enjoyable. More...

#include <rsocket>

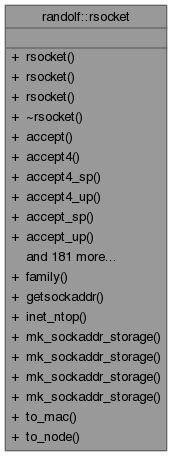

Collaboration diagram for randolf::rsocket:

Public Types
enum	RECVLINE_FLAGS : int {   RECVLINE_DEFAULT = 0 ,   RECVLINE_KEEP_ON_OVERFLOW = 1 ,   RECVLINE_PARTIAL = 2 }
	Optional flags used with rsocket's recvline() and recv_rline() methods to specify relevant text-line reading policies/semantics. More...
enum	TIMEOUT_BEHAVIOUR : bool {   TIMEOUT_EXCEPTION = true ,   TIMEOUT_EMPTY = false ,   TIMEOUT_NULL = false ,   TIMEOUT_ZERO = false }
	Optional flags used with various methods to determine whether they will throw an randolf::rex::xETIMEDOUT exception or merely return a nullptr, an empty set, or a 0 (zero) when a timeout duration elapses. More...
enum	TLS_FLAGS : int {   TLS_DEFAULT = 0 ,   TLS_EXCLUSIVE = 1 ,   TLS_NO_INGRESS = 2 ,   TLS_NO_EGRESS = 4 ,   TLS_CLIENT = 0 ,   TLS_SERVER = 8 }
	Optional flags used with rsocket's tls() and tls_ctx() methods to specify relevant policies/semantics. More...

Public Member Functions
	rsocket () noexcept
	Instantiate an empty rsocket without actually opening a socket, and therefore also without throwing any exceptions (useful in header-file definitions).
	rsocket (const int family, const int type=SOCK_STREAM, const int protocol=PF_UNSPEC)
	Instantiate an rsocket with IP/host address and [optional] port number.
	rsocket (const rsocket *rtemplate, const bool flag_create_socket=true)
	Instantiate an rsocket based on a minimal subset of the settings in the specified rsocket (using it as a template), without actually opening a socket, and therefore also without throwing any exceptions.
	~rsocket () noexcept
	Destructor, which closes any underlying sockets, frees any TLS structures that were allocated by OpenSSL, and performs any other necessary clean-up before finally copying the I/O statistics to a designated structure (if one was specified with the net_io_final() method).
rsocket *	accept ()
	Accept new [inbound] socket connetions. (This is typically used in a loop.)
rsocket *	accept4 (const int posix_flags=0)
	Accept new [inbound] socket connetions, with socket flags specified. (This is typically used in a loop.)
std::shared_ptr< rsocket >	accept4_sp (const int posix_flags=0)
	Accept new [inbound] socket connetions, with socket flags specified. (This is typically used in a loop.)
std::shared_ptr< rsocket >	accept_sp ()
	Accept new [inbound] socket connetions. (This is typically used in a loop.)
int	backlog () noexcept
	Find out what this rsocket's default listen backlog is.
rsocket *	backlog (int backlog=0) noexcept
	Override the default listen backlog for this rsocket.
rsocket *	bind (const std::string address, const int port=0)
	Bind this socket to the specified network address (and port number if the address family utilizes port numbers {e.g., TCP or UDP}). This is mostly used for server deamons, but can also be used to control the address from which the local host will make an outbound connection via the connect() method (this bound address is address from which the endpoint will recieve your connection).
rsocket *	bind (const struct sockaddr *addr, const socklen_t addrlen=sizeof(sockaddr))
	Bind this socket to the specified network address (and port number if the address family utilizes port numbers {e.g., TCP or UDP}). This is mostly used for server deamons, but can also be used to control the address from which the local host will make an outbound connection via the connect() method (this bound address is the address from which the endpoint will recieve your connection).
const size_t	buffer_size () noexcept
	Find out what buffer size is used by the various recv() methods.
rsocket *	buffer_size (const size_t nbytes)
	Override the default buffer size (typically 8,192 bytes) used by the various recv() methods.
rsocket *	buffer_size_reset ()
	Reset the default buffer size (typically 1024) used by the various recv() methods.
rsocket *	close ()
	Close this rsocket. (If this rsocket was already closed, then calling this method additional times will have no effect, and will not cause exceptions to be thrown.)
int	close_passive () noexcept
	Close this rsocket without throwing any exceptions (an error code is returned instead, which is useful while calling close_passive() from within a destructor).
rsocket *	connect (const std::string address, const int port=0)
	Connect this socket to a specific endpoint (which may differ from this rsocket's address that was previously configured by the bind() method).
const bool	debug () noexcept
	Find out whether debug mode is enabled.
const int	debug (const bool debug_flag, std::FILE *fd=stderr) noexcept
	Debug mode. When debug mode is enabled, output is sent to stderr by default, unless a second parameter specifies a different file handle (e.g., stdout, or even a socket).
const int	debug (const char *msg) noexcept
	Send the specified message as debug output (as long as debug mode is enabled; if disabled, no debug output will be sent).
const int	debug (const std::string msg) noexcept
	Send the specified message as debug output (as long as debug mode is enabled; if disabled, no debug output will be sent).
const std::FILE *	debug_fd () noexcept
	Find out which file descriptor/handle is used for debug output.
const int	debug_fd (std::FILE *fd) noexcept
	Specify a different file descriptor/handle to use for debug output.
const std::string	debug_prefix () noexcept
	Find out what the current prefix is set to that's used in debug output.
rsocket *	debug_prefix (const std::string prefix) noexcept
	Change the prefix used in debug output.
int	discard (int nbytes, int posix_flags=0, const size_t memory_size=0)
	Discards the specified number of 8-bit bytes efficiently, and without closing the stream, and without consuming excessive quantities of memory.
int	discard_line (int nbytes=-1, int posix_flags=0, long timeout=0, const size_t memory_size=0)
	Discards the specified number of 8-bit bytes efficiently, but stops upon encountering an EoL sequence (which will also be discarded; to find out which EoL sequence was consumed, use the eol_consumed_seq method which will also return an empty string if no EoL sequence was consumed), and without closing the stream, and without consuming excessive quantities of memory.
const std::string	eol () noexcept
	Find out what the current EoL (End of Line) sequence is set to.
rsocket *	eol (const char *eol) noexcept
	Set EoL (End of Line) sequence. This sequence is used by recvline(), recv_rline(), sendline(), and related functions, and it defaults to an empty string which results in the EoL sequence being detected automatically on-the-fly.
rsocket *	eol (const std::string eol) noexcept
	Set EoL (End of Line) sequence. This sequence is used by recvline(), recv_rline(), sendline(), and related functions, and it defaults to an empty string which results in the EoL sequence being detected automatically on-the-fly.
rsocket *	eol_adoption (const bool flag) noexcept
	Configure EoL adoption policy for the recvline() and recv_rline() methods. By default, rsocket is configured with the EoL adoption policy enabled alongside an empty eol() sequence, which results in the default operation being that the EoL sequence automatically gets detected and updated internally upon the first use of either the recvline() or recv_rline method.
const std::string	eol_consumed_seq () noexcept
	Returns a String containing the EoL character sequence that was consumed by the most recent successful call to the recvline() or recv_rline method ("successful" in this context means that the received line was terminated by a valid EoL character sequence; otherwise the previous/unmodified value is returned).
rsocket *	eol_fix_printf (const bool flag) noexcept
	Configure EoL substitution policy for the printf(), printfline(), vprintf(), and vprintfline() methods. By default, rsocket substitutes printf's \n sequence with the EoL sequence (if defined), but this method can be used to disable this behaviour.
const int	eol_index (const std::string buffer, int *with_eol_size) noexcept
	Finds the first instance of the EoL sequence and returns its offset (which is effectively the same as the size of the text, not including the characters that the EoL sequence is comprised of).
const bool	eos (const int timeout=0)
	Find out if the stream is at its end and that this rsocket's internal buffer (if one had been set up by the recvline() method) is empty. This doesn't necessarily mean that the stream is closed; but rather that the endpoint just hasn't sent any more data (yet).
const std::shared_ptr< sockaddr_storage >	getpeername ()
	Get peer name returns the address of the socket as a sockaddr_storage structure.
const std::string	getpeername_ntop ()
	Get peer name returns the address of the socket as a std::string object.
const std::shared_ptr< sockaddr_storage >	getsockname ()
	Get socket name returns the address of the socket as a "sockaddr_storage" structure.
const std::string	getsockname_ntop ()
	Get socket name returns the name of the socket as a std::string object.
std::shared_ptr< group_req >	getsockopt_group_req (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< group_source_req >	getsockopt_group_source_req (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< icmp6_filter >	getsockopt_icmp6_filter (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< in_addr >	getsockopt_in_addr (const int level, const int option)
	Get socket option details in the form of a structure.
int	getsockopt_int (const int level, const int option)
	Get socket option details in the form of an integer.
std::shared_ptr< ip6_mtuinfo >	getsockopt_ip6_mtuinfo (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< ip_mreq >	getsockopt_ip_mreq (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< ip_mreq_source >	getsockopt_ip_mreq_source (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< ipv6_mreq >	getsockopt_ipv6_mreq (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< linger >	getsockopt_linger (const int level, const int option)
	Get socket option details in the form of a structure.
template<class T >
std::shared_ptr< T >	getsockopt_other (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< sockaddr_in6 >	getsockopt_sockaddr_in6 (const int level, const int option)
	Get socket option details in the form of a structure.
std::shared_ptr< timeval >	getsockopt_timeval (const int level, const int option)
	Get socket option details in the form of a structure.
u_char	getsockopt_u_char (const int level, const int option)
	Get socket option details in the form of an unsigned character.
u_int	getsockopt_u_int (const int level, const int option)
	Get socket option details in the form of an unsigned integer.
const std::string	inet_ntop ()
	Get underlying socket's address as a std::string, for sockets in one of the supported families:
const bool	is_buffered () noexcept
	Find out whether an internal read buffer was allocated (this is most likely triggered by an attempt to read a line of text).
const bool	is_closed () noexcept
	Find out whether the underlying socket is not open (which may not be the same as specifically "closed" since a newly instantiated empty socket begins in a "not open" state despite the underlying socket not explicitly having been closed).
const bool	is_connected () noexcept
	Find out whether the underlying socket is connected with/to an endpoint.
const bool	is_endian_lsb () noexcept
	Find out whether the default byte order for this host is LSB (small endian).
const bool	is_endian_msb () noexcept
	Find out whether the default byte order for this host is MSB (big endian).
const bool	is_eol_adoption () noexcept
	Find out if the EoL adoption policy is enabled for the recvline() method (see the eol_adoption method to find out how the dynamically-detected EoL sequence gets adopted, and under what conditions).
const bool	is_eol_fix_printf () noexcept
	Find out if the EoL substitution policy is enabled for the printf(), printfline(), vprintf(), and vprintfline() methods.
const bool	is_open () noexcept
	Find out whether the underlying socket is open.
const bool	is_tls () noexcept
	Find out whether encrypted communications is enabled or disabled.
const bool	is_tls_client_mode () noexcept
	Find out whether TLS context is in TLS_CLIENT mode.
const bool	is_tls_egress_okay () noexcept
	Find out whether egress from encryption (to unencrypted mode) is allowed.
const bool	is_tls_exclusive () noexcept
	Find out whether encrypted communications is exclusive.
const bool	is_tls_ingress_okay () noexcept
	Find out whether ingress to encryption (from unencrypted mode) is allowed.
const bool	is_tls_server_mode () noexcept
	Find out whether TLS context is in TLS_SERVER mode.
const bool	is_tls_sni () noexcept
	Find out whether SNI (Server Name Identifier) is enabled (configured, which implies that an internal callback function was also set up).
const bool	is_tls_sni_match () noexcept
	Find out whether SNI (Server Name Identifier) was matched, which means that we're using one of the supplementary TLS certificates that are included in the associated rsocket_sni object as separate TLS contexts.
rsocket *	listen (int backlog=0)
	Enable listening mode for this rsocket to prepare it to accept() new inbound connections.
std::string	name () noexcept
	Find out what this rsocket's name is.
rsocket *	name (const std::string name) noexcept
	Specify a name for this rsocket.
std::string	name_sni () noexcept
	Find out what this rsocket's actual TLS SNI hostname is.
std::shared_ptr< rsocket_io >	net_io () noexcept
	Get socket I/O statistics from internally-tracked socket I/O counters.
std::string	net_io (const char *format, size_t len=0, rsocket_io *addr=nullptr) noexcept
	Get socket I/O statistics from internally-tracked socket I/O counters as a pre-formatted std::string object.
rsocket *	net_io_final (rsocket_io *addr) noexcept
	Where the destructor should save final I/O statistics before this rsocket's resources are completely freed/deallocated.
rsocket *	net_io_update (rsocket_io *addr) noexcept
	Where the destructor should save current I/O statistics.
ulong	pending ()
	Return the number of bytes pending to be received, without actually receiving any data.
short	poll (const short events=POLLIN, const int timeout=0, const bool timeout_behaviour=TIMEOUT_EXCEPTION)
	Poll the underlying socket using the poll() method for data that's ready for receiving (default), etc.
const uint16_t	port () noexcept
	Get port number associated with underlying socket descriptor/handle.
short	ppoll (const short events=POLLIN, const int tv_sec=0, const long tv_nsec=0, const sigset_t *sigmask=nullptr, const bool timeout_behaviour=TIMEOUT_EXCEPTION)
	Poll the underlying socket using the ppoll() method for data that's ready for receiving (default), etc.
short	ppoll (const short events=POLLIN, const struct timespec *tmo_p=nullptr, const sigset_t *sigmask=nullptr, const bool timeout_behaviour=TIMEOUT_EXCEPTION)
	Poll the underlying socket using the ppoll() method for data that's ready for receiving (default), etc.
rsocket *	printf (const char *format,...)
	Send a formatted string to the rsocket endpoint.
rsocket *	printfline (const char *format,...)
	Send a formatted string to the rsocket endpoint, and append an EoL sequence.
std::vector< char >	recv (const size_t nbytes=0, const int posix_flags=0)
	Receive data from the endpoint into a std::vector<char> that is allocated on-the-fly.
std::vector< char >	recv (std::vector< char > buf, const int posix_flags=0)
	Receive data from the endpoint into the std::vector object supplied in the buf parameter.
std::string	recv_as_string (const size_t nbytes=0, const int posix_flags=0)
	Receive data from the endpoint into a std::string object that is allocated on-the-fly.
char *	recv_asciiz (const size_t nbytes=0, const int posix_flags=0)
	Receive an ASCIIZ string from the endpoint, including the NULL terminator.
u_char	recv_byte (const int posix_flags=0)
	Receive one byte (unsigned 8-bit byte) of data from the endpoint.
char	recv_char (const int posix_flags=0)
	Receive one character (signed 8-bit byte) of data from the endpoint.
randolf::rline	recv_rline (const size_t nbytes=0, const int posix_flags=0, long timeout=0, const int recvline_flags=RECVLINE_FLAGS::RECVLINE_DEFAULT)
	Receive a line of data from the endpoint, into an randolf::rline object with the EoL character(s) isolated. While this is meant for ASCII and UTF-8 text, it will also work with binary data that doesn't include EoL character sequences as non-line-ending data (when receiving binary data, the recv() and recvz() methods tend to be better-suited).
template<typename T >
T	recv_struct (const int posix_flags=0)
	Receive a data structure from the endpoint.
uint16_t	recv_uint16_lsb (const int posix_flags=0)
	Receive one 16-bit unsigned integer of data in LSB (little endian) order from the endpoint.
uint16_t	recv_uint16_msb (const int posix_flags=0)
	Receive one 16-bit unsigned integer of data in MSB (big endian) order from the endpoint.
uint32_t	recv_uint32_lsb (const int posix_flags=0)
	Receive one 32-bit unsigned integer of data in LSB (little endian) order from the endpoint.
uint32_t	recv_uint32_msb (const int posix_flags=0)
	Receive one 32-bit unsigned integer of data in MSB (big endian) order from the endpoint.
uint64_t	recv_uint64_lsb (const int posix_flags=0)
	Receive one 64-bit unsigned integer of data in LSB (little endian) order from the endpoint.
uint64_t	recv_uint64_msb (const int posix_flags=0)
	Receive one 64-bit unsigned integer of data in MSB (big endian) order from the endpoint.
std::vector< char >	recvfrom (const size_t nbytes, const int posix_flags, struct sockaddr *from, socklen_t fromlen=sizeof(sockaddr))
	Receive data from a specific endpoint.
std::string	recvline (const size_t nbytes=0, const int posix_flags=0, long timeout=0, const int recvline_flags=RECVLINE_FLAGS::RECVLINE_DEFAULT)
	Receive a line of data from the endpoint, with the EoL character(s) removed. While this is meant for ASCII and UTF-8 text, it will also work with binary data that doesn't include EoL character sequences as non-line-ending data (when receiving binary data, the recv() and recvz() methods tend to be better-suited).
mmsghdr *	recvmmsg (struct mmsghdr *mmsg, const unsigned int vlen=sizeof(mmsghdr), const int posix_flags=0, struct timespec *timeout={0})
	Receive data in the form of an "mmsghdr" structure.
msghdr *	recvmsg (msghdr *msg, const int posix_flags=0)
	Receive data in the form of a "msghdr" structure.
std::vector< char >	recvz (const size_t nbytes=0, const int posix_flags=0)
	Receive data from the endpoint, and add a 0 (null) onto the end. This is useful when using the resulting std::vector<char> as an ASCIIZ string.
rsocket *	send (const char *msg, size_t len=0, const int posix_flags=0)
	Send data in the form of a C-string to the endpoint.
rsocket *	send (const std::string msg, const int posix_flags=0)
	Send data in the form of a std::string to the endpoint.
rsocket *	send (const std::vector< char > msg, const int posix_flags=0)
	Send data in the form of a std::vector<char> to the endpoint.
rsocket *	send_asciiz (const char *msg, const int posix_flags=0)
	Send data in the form of an ASCIIZ string to the endpoint, including the terminating NULL character.
rsocket *	send_byte (const u_char value, const int posix_flags=0)
	Send one 8-bit byte (one unsigned character) of data to the endpoint.
rsocket *	send_char (const char value, const int posix_flags=0)
	Send one signed character (one 8-bit byte) of data to the endpoint.
rsocket *	send_eol (const int posix_flags=0)
	Send the EoL sequence to the endpoint.
template<typename T >
rsocket *	send_struct (const T value, const int posix_flags=0)
	Send a data structure to the endpoint.
rsocket *	send_uint16_lsb (const uint16_t value, const int posix_flags=0)
	Send one 16-bit unsigned integer of data in LSB (little endian) order to the endpoint.
rsocket *	send_uint16_msb (const uint16_t value, const int posix_flags=0)
	Send one 16-bit integer of data in MSB (big endian) order to the endpoint.
rsocket *	send_uint32_lsb (const uint32_t value, const int posix_flags=0)
	Send one 32-bit unsigned integer of data in LSB (little endian) order to the endpoint.
rsocket *	send_uint32_msb (const uint32_t value, const int posix_flags=0)
	Send one 32-bit unsigned integer of data in MSB (big endian) order to the endpoint.
rsocket *	send_uint64_lsb (const uint64_t value, const int posix_flags=0)
	Send one 64-bit unsigned integer of data in LSB (little endian) order to the endpoint.
rsocket *	send_uint64_msb (const uint64_t value, const int posix_flags=0)
	Send one 64-bit unsigned integer of data in MSB (big endian) order to the endpoint.
rsocket *	sendline (const std::string msg=std::string(), const int posix_flags=0)
	Send data in the form of a std::string to the endpoint, with an EoL sequence appended.
rsocket *	sendmmsg (struct mmsghdr *mmsg, const unsigned int vlen=sizeof(mmsghdr), const int posix_flags=0)
	Send data in the form of a "mmsghdr" structure to a specific endpoint.
rsocket *	sendmsg (const struct msghdr *msg, const int posix_flags=0)
	Send data in the form of a "msghdr" structure to a specific endpoint.
rsocket *	sendto (const char *msg, const size_t len, const int posix_flags, const struct sockaddr *to, socklen_t tolen=sizeof(sockaddr))
	Send data in the form of a C-string to a specific endpoint.
rsocket *	sendto (const std::string msg, const int posix_flags, const struct sockaddr *to, socklen_t tolen=sizeof(sockaddr))
	Send data in the form of a std::string to a specific endpoint.
rsocket *	sendz (const char *msg, const int posix_flags=0)
	Send data in the form of an ASCIIZ string to the endpoint. The terminating NULL character won't be transmitted.
rsocket *	sendzto (const char *msg, const int posix_flags, const struct sockaddr *to, socklen_t tolen=sizeof(sockaddr))
	Send data in the form of an ASCIIZ string to a specific endpoint. The terminating NULL character won't be transmitted.
rsocket *	setsockopt (const int level, const int option, const group_req &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const group_source_req &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const icmp6_filter &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const in_addr &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const int value)
	Set socket option to the specific integer.
rsocket *	setsockopt (const int level, const int option, const ip6_mtuinfo &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const ip_mreq &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const ip_mreq_source &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const ipv6_mreq &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const linger &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const sockaddr_in6 &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const timeval &value)
	Set socket option to the specific structure.
rsocket *	setsockopt (const int level, const int option, const u_char value)
	Set socket option to the specific unsigned character.
rsocket *	setsockopt (const int level, const int option, const u_int value)
	Set socket option to the specific unsigned integer.
rsocket *	shutdown (const int how=SHUT_RDWR, const bool tls_shutdown=true)
	Shut down the underlying socket, partially or fully.
const bool	sockatmark ()
	Find out whether the underlying socket is at the out-of-band (OOB) mark.
rsocket *	socket (const int family, const int type=SOCK_STREAM, const int protocol=PF_UNSPEC)
	Complete the configuration of an rsocket that was previously initialized without any parameters (a.k.a., an "empty rsocket").
const int	socket_family () noexcept
	Get underlying socket family/domain constant (SO_DOMAIN).
const int	socket_fd () noexcept
	Get underlying socket descriptor/handle.
rsocket *	socket_fd (const int new_socket_fd)
	Set underlying socket descriptor/handle (to one that is presumed to be open).
const int	socket_protocol () noexcept
	Get underlying socket protocol constant (SO_PROTOCOL).
const int	socket_type () noexcept
	Get underlying socket type constant (SO_TYPE).
std::shared_ptr< timeval >	timeout ()
	Find out what the read timeout is set to on the current socket.
rsocket *	timeout (const int tv_sec=0, const long tv_usec=0)
	Set the recv timeout on the current socket.
rsocket *	timeout (const struct timeval tv)
	Set the recv timeout on the current socket.
long	timeout_recvline ()
	Find out what the read timeout is set to when using the recvline() method.
rsocket *	timeout_recvline (const long timeout)
	Set the read timeout for the recvline() method (the recvline() method's timeout parameter can override this setting).
rsocket *	tls (const bool status=true, const int flags=TLS_FLAGS::TLS_DEFAULT)
	Enable or disable encrypted communications (from the OpenSSL library).
SSL_CTX *	tls_ctx () noexcept
	Return the current TLS context (multiple TLS contexts are supported, although typically needed to support SNI with inbound connections).
rsocket *	tls_ctx (rsocket *rtemplate, const int flags=TLS_FLAGS::TLS_DEFAULT)
	Copy the source rsocket's TLS context map and add it to this rsocket's collection; or, if the source doesn't have any TLS contexts and this rsocket doesn't have any TLS contexts in its collection, then initialize TLS and instantiate a new TLS context. In either scenario, the source rsocket will be treated as a template as all TLS flags duplicated to enable encrypted socket I/O for use in this rsocket().
rsocket *	tls_ctx (SSL_CTX *ctx, const int flags=TLS_FLAGS::TLS_DEFAULT)
	Initialize TLS and instantiate a TLS context, and add it to this rsocket's current collection of TLS contexts, and set it as the currently active TLS context (so that a certificate chain and private key may be added to it).
rsocket *	tls_ctx_check_privatekey ()
	Check the private key it to ensure it's consistent with the corresponding TLS certificate chain.
rsocket *	tls_ctx_use_certificate_chain_and_privatekey_files (const char *chain_file, const char *key_file)
	Load a TLS certificate chain and private key in PEM format from text files and use them in the TLS context.
rsocket *	tls_ctx_use_certificate_chain_and_privatekey_files (const std::string chain_file, const std::string key_file)
	Load a TLS certificate chain and private key in PEM format from text files and use them in the TLS context.
rsocket *	tls_ctx_use_certificate_chain_and_privatekey_pems (const char *cert_pem_data, const char *key_pem_data, size_t cert_len=0, size_t key_len=0, const bool random_fill=true)
	Load a TLS certificate chain and a TLS private key in PEM format from memory and use them in the TLS context.
rsocket *	tls_ctx_use_certificate_chain_file (const char *file)
	Load a TLS certificate chain in PEM format from a text file and use it in the TLS context.
rsocket *	tls_ctx_use_certificate_chain_file (const std::string file)
	Load a TLS certificate chain in PEM format from a text file and use it in the TLS context.
rsocket *	tls_ctx_use_certificate_chain_pem (const char *pem_data, size_t len=0, const bool random_fill=true)
	Load a TLS certificate chain in PEM format from memory and use it in the TLS context.
rsocket *	tls_ctx_use_privatekey_file (const char *file)
	Load a TLS private key in PEM format from a text file and use it in the TLS context.
rsocket *	tls_ctx_use_privatekey_file (const std::string file)
	Load a TLS private key in PEM format from a text file and use it in the TLS context.
rsocket *	tls_ctx_use_privatekey_pem (const char *pem_data, size_t len=0, const bool random_fill=true)
	Load a TLS private key in PEM format from memory and use it in the TLS context.
rsocket *	tls_do_handshake ()
	Initiate the TLS handshake with the endpoint (which is presumed to be a server). This method makes it easier to support application-level commands such as STARTTLS (which are implemented in protocols like SMTP, POP3, IMAP4, MEOW, FTP, NNTP, LDAP, XMPP, etc.).
const SSL *	tls_fd () noexcept
	Get OpenSSL's TLS structure.
rsocket_sni *	tls_sni () noexcept
	Return the current rsocket_sni object that this rsocket will use when accepting incoming encrypted connections.
rsocket *	tls_sni (rsocket_sni *sni) noexcept
	Set the current rsocket_sni object that this rsocket will use when accepting incoming encrypted connections.
rsocket *	vprintf (const char *format, va_list args)
	Send a formatted string to the rsocket endpoint.
rsocket *	vprintfline (const char *format, va_list args)
	Send a formatted string to the rsocket endpoint, and append an EoL sequence.

Static Public Member Functions
static int	family (const std::string address, const int preferred_family=AF_UNSPEC)
	Find out what the specified IP address string's family (SO_DOMAIN) is.
static sockaddr *	getsockaddr (const sockaddr_storage *sa)
	Get specified "sockaddr_storage" structure's address as a "sockaddr" structure, for sockets in one of the supported families:
static const std::string	inet_ntop (sockaddr_storage *sa)
	Get specified "sockaddr_storage" structure's address as a std::string, for sockets in one of the supported families:
static std::shared_ptr< sockaddr_storage >	mk_sockaddr_storage (const char *node_name, const char *service_name=nullptr, const addrinfo *hints=nullptr)
	Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.
static std::shared_ptr< sockaddr_storage >	mk_sockaddr_storage (const char *node_name, const u_int16_t service_name, const addrinfo *hints=nullptr)
	Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.
static std::shared_ptr< sockaddr_storage >	mk_sockaddr_storage (const std::string node_name, const std::string service_name, const addrinfo *hints=nullptr)
	Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.
static std::shared_ptr< sockaddr_storage >	mk_sockaddr_storage (const std::string node_name, const u_int16_t service_name, const addrinfo *hints=nullptr)
	Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.
static std::string	to_mac (const void *addr) noexcept
	Convert a 48-bit integer to a machine address in the form of xx:xx:xx:xx:xx:xx where every instance of xx is a hexadecimal representation of each respective 8-bit byte portion.
static std::string	to_node (const void *addr) noexcept
	Convert a 48-bit integer to a node address in the form of xxxx:xxxx:xxxx where every instance of xxxx is a hexadecimal representation of each respective 16-bit word portion.

Friends
class	rsocket_group

Detailed Description

This rsocket class provides an easy-to-use and thoroughy-implemented object-oriented socket I/O interface for C++, intended to make socket I/O programming (with or without TLS encryption) easier and more enjoyable.

Here's a short list of benefits that are helpful in developing high quality code that's consistent-and-reliable, and improves overall productivity:

• eliminating the need to repeatedly write blocks of code that check for errors, by throwing exceptions instead (see randolf::rex::rex class for details and the long list of exceptions that are supported)
• eliminating the need to track socket descriptors
• eliminating the need to handle encrypted I/O separately (most functions)
• eliminating the need to manage memory for many common structures used to interface with socket options, etc.
• eliminating the need to record socket I/O statistics with every call to underlying socket I/O functions (see randolf::rsocket_io for details)
• text-line reading/writing with an adapative approach (invented by Randolf Richardson in the 1980s for a custom BBS software project) to automatically detect EoL (End-of-Line) character sequences (unless the developer provides a specific sequence via an eol method) that can determine whether an endpoint is sending Linux/UNIX (standard), MacOS, DOS CR/LF, or even broken LF/CR (reverse of DOS) EoL sequences
• transparent support for encryption with many additional features, including STARTTLS, ingress/egress policy enforcement, and SNI
• eliminating the complexity of handling events with poll(), select(), and related functions (see the randolf::rsocket_mux class for details)
• providing a variety of other useful features that make it easier to communicate with socket endpoints, such as receiving/sending an entire structure via a single call to the new-and-specialized recv_struct or send_struct methods, respectively

An rsocket is either the endpoint that our underlying socket will connect to, or it's the server daemon that our underying socket will listen() to and accept() [inbound] connections from.

Use case

Using the C interface, the programming must check for errors by testing the response codes (most of which are consistent, with a few subtle outliers), which leads to a lot of additional error-checking code with the potential for unintended errors (a.k.a., bugs). This style is necessary in C, but with C++ the way to handle errors is with exceptions, so I created this rsocket class to handle all these tedious details behind-the-scenes and, for any socket errors, to generate exceptions so that source code can be greatly simplified (and, as a result, also easier to read and review).

Pre-allocating buffers is also handled internally, which is particularly useful when making repeated calls to recv() and related methods. These methods return std::shared_ptr<structure > (a C++ smart pointer that aids in the prevention of resource leaks) or std::vector<char> (resized to the actual number of bytes received) as appropriate which eliminates the need to track size_t separately.

Conventions

Lower-case letter "r" is regularly used in partial example code to represent an instantiated rsocket object.

An ASCIIZ string is a C-string (char* array) that includes a terminating null (0) character at the end.

The following custom qualifiers are incorporated into headings by Doxygen alongside method titles throughout the documentation:

• POSIX denotes a method that is based on POSIX functions by the same name and don't deviate significantly from the POSIX function arguments (intended to be helpful to developers transitioning to/from rsocket or working on source code that utilizes rsocket and POSIX functions)
• TLS denotes that a method works properly with TLS-encrypted sockets (most of the POSIX functions have been made to work properly with TLS, but for the few rare cases of functions that can't be made to work with TLS an effort has also been made to mention this using Doxygen's "warning" sections in addition to omitting the TLS qualifier)

Getting started with a few simple examples

This is an example of connecting to an HTTP server, using the "GET" command to request the home page (using HTTP/1.0), then receiving-and-displaying the resulting web page's contents via STDOUT (or sending an error message to STDERR). Finally, we exit with an EXIT_SUCCESS (or EXIT_FAILURE) code.

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    r.connect("www.example.com", 80);
    r.sendline("GET / HTTP/1.0");
    r.sendline("Host: www.example.com");
    r.sendline("Connection: close");
    r.send_eol();
    while (r.is_open()) {
      std::cout << r.recvline(0, MSG_WAITALL) << std::endl;
    } // -x- while data -x-
    r.close();
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Parameter stacking is supported (with methods that return rsocket*); in this example, notice that semicolons (";") and "r." references are omittted (when compared with the above):

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    r.connect("www.example.com", 80)
    ->sendline("GET / HTTP/1.0")
    ->sendline("Host: www.example.com")
    ->sendline("Connection: close")
    ->send_eol();
    while (r.is_open()) {
      std::cout << r.recvline(0, MSG_WAITALL) << std::endl;
    } // -x- while data -x-
    r.close();
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Features

This is meant to be a comprehensive socket class for C++, which is intended to make socket I/O coding easier for developers with some key features:

• easy conversion from C-style POSIX sockets due to API consistency
• transparent TLS support (OpenSSL dependency)
  • keys and certificate chains can also be loaded from memory
  • SNI support (see the rsocket_sni class for more information)
• underlying socket handle is accessible (via the socket_fd() method)
• socket options are easier to get and to set
  • sensible support for future or unknown socket options
• errors are presented as ~100 separate exception classes: rex::rex
  • one parent exception class makes it easier to catch all socket errors
  • a few exceptions groups are also provided to catch groups of errors
• new buffers are returned as std::shared_ptr's to eliminate memory leaks
• constructors with sensible defaults help to simplify coding
• documentation includes code samples (with #include lines as needed)
• debug output with helpful output (and option to set output file handle)
• low-overhead is considered (this is why there's a bit more overloading)
• thread-safety is noted where it is absolutely available (if any caution is warranted, it will also be noted)
• can send ASCIIZ (C-strings) without needing to specify string length
• can send std::string (which tracks its own string length)
• each socket can optionally have a name arbitrarily assigned (e.g., by an algorithm, or even populated with the connecting user's name, or whatever purpose the development goals find it useful for)

Additional features that are not part of the typical POSIX standard, but deserve special mention because they are needed so often:

• easy access to internal I/O counters (see rsocket_io for details)
  • your rsocket_io structure can be updated automatically by rsocket's destructor after underlying socket is closed (see net_io_final() method for details)
• printf(), printfline(), vprintf(), vprintfline() // Formatted strings
  • with automatic EoL sequence substitution (and/or the addition of)
• recv_asciiz(), send_asciiz() // ASCIIZ string I/O operations
• recv_byte() , send_byte() // 8-bit byte operations (LSB/MSB is N/A)
• recv_struct(), send_struct() // Multi-byte operations
• recv_uint16(), send_uint16() // 16-bit operations with LSB/MSB variants
• recv_uint32(), send_uint32() // 32-bit operations with LSB/MSB variants
• recv_uint64(), send_uint64() // 64-bit operations with LSB/MSB variants
• recvline(), recv_rline(), sendline() // ASCII text line I/O operations
  • class-wide configurable newline sequence (defaults to autodetect)
• rsocket_group class for grouping rsockets (and automatic inclusion by accept() and accept4() methods; this may be a different group from whichever group the parent rsocket is in, if it's even in one)
  • option to send data to all rsocket objects in the rsocket_group
  • with support from the rsocket_mux class (for multiplexing operations)
  • automatic naming policies (possibly like net_io() formatting style)

Some advanced features are planned that exceed what the basic socket I/O functions provide, but are also needed:

• recv_uint128()/send_uint128() // 128-bit operations w/ LSB/MSB variants
• recv_uint(n)/send_uint(n) where "n" specifies the number of bits (which must be a multiple of 8), with LSB/MSB variants
• auto-detection of inbound TLS connection (this is turned off by default)
  • This is not the same as STARTTLS (an application-level command, for which the tls_do_handshake() method will likely be used)
• simple timing tracking options using timing_start() and timing_stop() methods, the results of which can be retrieved with timing_get() or a similarly-named group of methods

Other features that are not a high priority:

• internal support for portability to Microsoft Windows, which is a major undertaking that I know will be time-consuming since Windows Sockets exhibit some nuanced behaviours and are not consistent with POSIX sockets APIs that are used by Linux, UNIX, MacOS, and pretty much all other Operating Systems. Because of this, MS-Windows portability just isn't a high priority for me (without sufficient demand and sufficient funding so I can commit my time without missing mortgage payments, student loan payments {for my kids}, various living expenses, etc.).

Requirements

The __time_t structure must be 64-bit (or larger). This becomes espcially important for the recvline method, in addition to Year 2038 compliance.

Notes

I use the term "ASCIIZ string" to indicate an array of characters that's terminated by a 0 (a.k.a., null). Although this is very much the same as a C-string, the difference is that in many API functions a C-string must often be accompanied by its length value. When referring to an ASCIIZ string, I'm intentionally indicating that the length of the string is not needed because the string is null-terminated. (This term was also commonly used in assembly language programming in the 1970s, 1980s, and 1990s, and as far as I know is still used by machine language programmers today.)

UTF-8 works without any problems as it is backward-compatible to 8-bit ASCII, and because std::string uses 8-bit bytes to store strings internally. Do keep in mind that the manipulation of UTF-8 substrings will require working with UTF-8 codepoints that may consume one or more bytes, which is beyond the scope of the impartial (to UTF-8 and ASCII) functionality that this rsocket class provides.

UTF-8 newline codepoints NEL (c2 85), LS (e2 80 a8), and PS (e2 80 a9) garner no special handling at this time - unlike CR/LF (0d/0a) - and are merely treated as non-newline codepoints. There is a possibility of adding support for this in the future, but additional research and planning is required to make sure this works properly. What is most likely is that some UTF-8 flags will be added to support each of these (which will probably be disabled by default) that will be integrated into the readline() methods. This also depends on how widely used these particular codepoints are, and pending further research to determine whether these really are supposed to be used functionally as newlines...

So far, there are two UTF-8 codepoints that absolutely are not functional, yet which a small number of people have mistakenly assumed are:

• ^C_R = superscript "C" with subscript "R" (e2 90 9d)
• ^N_L = superscript "N" with subscript "L" (e2 90 a4)

The special characters above are intended to represent the Carriage-Return and New-Line respectively in documentation such as ASCII character reference charts, which were used mostly by IBM in the 1970s and 1980s for instruction manuals (and in other documentation), and also on a few keyboard overlays.

Background

I created this class to make it easier to write internet server daemons. I started out using C-style socket functions (because C++ doesn't come with a socket class), but I found that I didn't enjoy mixing something as important and detailed as socket I/O in a procedural way into the object-oriented paradigm that C++ provides.

After looking for existing solutions (none of which served as comprehensive replacements for socket I/O), I embarked on creating the rsocket class, and then I began to understand why this probably hadn't been done – it's a massive undertaking, primarily because there are a lot of functions that are needed to handle socket I/O. Further, [at the time of this writing] the sockaddr_storage structure wasn't as widely used as it should be, and so information about it tended to be scarce, incomplete, or incorrect (further research, and diving down into some pretty deep "rabbit holes," was required to understand this properly, which was worthwhile because it resulted in having transparent support for IPv4 and IPv6 without breaking backward compatibility for code expecting specific structures).

Moving error codes into exceptions is also a major effort because they are diverse and plentiful, and there are so many errors that can occur at various stages for many different reasons. There are also a few outlier functions that require slightly different approaches to error handling due to subtly different rules for handling their errors, and so the exception-generation wasn't as straight-forward as one might optimistically expect, but this is one of the many benefits of the object-oriented programming pardigm because handling edge cases internally results in a consistent error-handling interface using exceptions that also simplifies the source code. (Need to handle a specific set of conditions? Catch the relevant exceptions for those cases in an inner set of exceptions, and just catch all the others in a more general way without the added complexity of repeatedly checking for errors every step along the way.)

So, I dedicated time to make this work, and with the intention of making it an open source project once I got it into a state that's ready for the general public. This required putting my other C++ projects on hold, which was fine because they didn't have strict deadlines and using this socket class in them will speed up development in the long-term anyway, so it's clearly worth the effort to me ... and I sincerely hope that my efforts will be helpful to others too.

My background in programming began when I was a young child, teaching myself BASIC and then machine language (when I found BASIC to be too limited) before moving on to other languages like Perl and Java many years later. Eventually I circled around to C (which I chose to learn the hard way by writing some PostgreSQL extensions) and then C++ a few years after that. I have a lot of experience with socket communications, including fully-featured DNS resolver library code in machine language for Novell's NetWare that used C calling conventions and supported varargs, which worked well for the few developers who needed or wanted it.

History

• 2022-Nov-09 v1.00 Initial version
• 2022-Nov-26 v1.00 Moved exception handling to a separate class
• 2022-Nov-28 v1.00 Completed readline/send functionality
• 2022-Dec-03 v1.00 Added endianness transparency
• 2022-Dec-04 v1.00 Added printf() support
• 2022-Dec-24 v1.00 Added socket MUXing
• 2023-Feb-22 v1.00 Added TLS/SSL support
• 2023-Mar-10 v1.00 Added TLS-SNI support
• 2023-Apr-19 v1.00 Added TLS certificate loading from memory
• 2023-May-24 v1.00 Added support for clang++ compilation
• 2023-Jun-09 v1.00 Improvements to dynamic internal read buffering
• 2023-Oct-31 v1.00 Improvements to various classes
• 2024-Feb-21 v1.00 Added is_buffered() method
• 2024-Mar-31 v1.00 Completed recvline (implemented a work-around for a subtle SSL_peek failure to extract additional data when a user at an end-point is communicating with "icanon" mode enabled)
• 2024-May-24 v1.00 Changed source code to accomodate clang++ compiler
• 2024-Jun-04 v1.00 Added POSIX and TLS qualifiers to all applicable methods (Doxygen incorporates into the documentation)
• 2024-Oct-23 v1.00 Various minor improvements to the documentation since the previous update
• 2024-Nov-05 v1.00 Added eol_consumed_seq() method
• 2024-Nov-10 v1.00 Added discard() method
• 2024-Nov-17 v1.00 Added recv_rline() method
• 2024-Nov-19 v1.00 Added recv_as_string() method
• 2024-Nov-22 v1.00 Added discard_line() method
• 2024-Nov-28 v1.00 Switched internal ring buffer to a proper ring buffer that's now available in the rring class (which was made initially for this purpose)
• 2024-Dec-08 v1.00 Improved shutdown() method to handle SSL shutdown fully and added a parameter to prevent calling SSL_shutdown()
• 2024-Dec-10 v1.00 Changed eos() method to use faster ioctl POSIX function and OpenSSL's SSL_has_pending function (with TLS)
• 2024-Dec-10 v1.00 Added RECVLINE_FLAGS enum to expand the functionality of how the recvline() and recv_rline methods deal with data in specific scenarios, which helps to satisify the needs of specific advanced data processing scenarios
• 2024-Dec-23 v1.00 Updated calls to methods that were renamed today in the rring class

Version

1.00

Author

Randolf Richardson

Member Enumeration Documentation

RECVLINE_FLAGS

enum randolf::rsocket::RECVLINE_FLAGS : int

Optional flags used with rsocket's recvline() and recv_rline() methods to specify relevant text-line reading policies/semantics.

See also

recvline

recv_rline

Enumerator
RECVLINE_DEFAULT	The RECVLINE_DEFAULT flag isn't necessary, but it's included here for completeness as it accomodates programming styles that prefer to emphasize when defaults are being relied upon.
RECVLINE_KEEP_ON_OVERFLOW	The RECVLINE_NO_DISCARD_ON_OVERFLOW flag prevents data from being discarded when an randolf::rex::xEOVERFLOW exception is thrown (which is caused when a line of text exceeds the specified maximum line length). Note The MSG_PEEK flag also prevents the automatic discarding of data, regardless of whether the randolf::rex::xEOVERFLOW is thrown, thus it differs from this flag in multiple ways that vary with how and why it's used. Warning Data will need to be consumed in a different way, such as by attempting to read into a larger buffer than what had been allocated, or by receiving portions or discarding some or all that remains. By default, when the randolf::rex::xEOVERFLOW exception is thrown, all pending data (up to and including the upcoming EoL sequence, or the EoS, whichever comes first) is discarded. See also discard_line()
RECVLINE_PARTIAL	The RECVLINE_PARTIAL flag receives an incomplete line of text and returns it instead of throwing the randolf::rex::xEOVERFLOW exception, and causes the eol_consumed_seq() method to return an empty string (which indicates that no EoL sequence was consumed). See also eol_consumed_seq()

TIMEOUT_BEHAVIOUR

enum randolf::rsocket::TIMEOUT_BEHAVIOUR : bool

Optional flags used with various methods to determine whether they will throw an randolf::rex::xETIMEDOUT exception or merely return a nullptr, an empty set, or a 0 (zero) when a timeout duration elapses.

If you're not sure of whether to use TIMEOUT_EMPTY, TIMEOUT_NULL, or TIMEOUT_ZERO in your code, then I suggest using TIMEOUT_NULL since NULL will likely be the most recognizable in most code reviews.

Note

You'll know when this is an option because the method will support this.

Enumerator
TIMEOUT_EXCEPTION	Indicate that an randolf::rex::xETIMEDOUT exception should be thrown when the timeout duration elapses.
TIMEOUT_EMPTY	Indicate that a nullptr, an empty set, or a 0 (zero) should be returned when the timeout duration elapses.
TIMEOUT_NULL	Indicate that a nullptr, an empty set, or a 0 (zero) should be returned when the timeout duration elapses.
TIMEOUT_ZERO	Indicate that a nullptr, an empty set, or a 0 (zero) should be returned when the timeout duration elapses.

TLS_FLAGS

enum randolf::rsocket::TLS_FLAGS : int

Optional flags used with rsocket's tls() and tls_ctx() methods to specify relevant policies/semantics.

Enumerator
TLS_DEFAULT	The TLS_DEFAULT flag isn't necessary, but it's included here for completeness as it accomodates programming styles that prefer to emphasize when defaults are being relied upon.
TLS_EXCLUSIVE	Only encrypted connections are permitted, initially, and all attempts to begin with unencrypted connections will consistently fail. Encrypted connections must begin with a cryptographic handshake packet, or else the connection will be rejected as due to being reasonably assumed to be "not encrypted." Postcondition If this flag isn't set, an application-level mechanism can be used to upgrade to TLS encryption (this is common with connections that begin unencrypted, and issue a proprietary command {such as the STARTTLS command in SMTP} to upgrade to TLS later on {of which the tls() method is used to affect an ingress; see the TLS_NO_INGRESS flag for additional information}). Note Creating an exclusively unencrypted connection is accomplished by not initializing TLS. See also tls() TLS_NO_EGRESS to prevent support for application-level downgrades to unencrypted connections
TLS_NO_INGRESS	Mid-stream upgrades to encrypted connections are not permitted (e.g., via application-level initiations like the STARTTLS command as seen in SMTP), which will also cause calls to the tls() method to fail fast after plain non-encrypted data has already been sent or received. Precondition This flag is not necessary when the TLS_EXCLUSIVE flag is set. See also is_tls_ingress_okay() tls_do_handshake() TLS_NO_EGRESS
TLS_NO_EGRESS	Mid-stream downgrades to unencrypted connections are not permitted (e.g., via application-level initiations like a hypothetical STOPTLS command as seen in FTPS), which will also cause calls to the tls() method to fail fast after encrypted data has already been sent or received. Precondition This flag may be combined with the TLS_EXCLUSIVE flag to prevent a connection from being downgraded programatically. Note Although egress to an unencrypted connection doesn't occur automatically (since egress can only be affected programatically to support commands at the application level), this flag is useful to prevent third-party code from downgrading an encrypted rsocket to unencrypted. Warning Supporting unencrypted communications is strongly discouraged over public networks (e.g., the internet) because unencrypted streams are trivially susceptible to man-in-the-middle attacks that can alter the contents of the data in both directions (which is a particularly dangerous prospect for sending/receiving sensitive information). See also is_tls_egress_okay() TLS_NO_INGRESS
TLS_CLIENT	This is a convenience flag that provides an option for developers to be more clear in their use of the tls() and tls_ctx() methods to indicate intent to rely on what is already the default. See also tls_do_handshake() TLS_SERVER
TLS_SERVER	Indicates that this rsocket will be for a server daemon, and to initialize a new TLS context (when one isn't being provided) using OpenSSL's TLS_server_method() function instead of OpenSSL's TLS_client_method() function (the latter is the default because most code is anticipated to be client-oriented). Attention Setting the CLIENT/SERVER flag incorrectly will typically cause the following error that's difficult to track down, which is usually triggered by calling accept, accept4(), or connect(), and so I hope that including this information here in this documentation will be helpful: error:140C5042:SSL routines:ssl_undefined_function:called a function you should not call The absence of this flag has the same effect as specifying the TLS_CLIENT flag. See also TLS_CLIENT

Constructor & Destructor Documentation

rsocket() [1/3]

randolf::rsocket::rsocket ( )

inlinenoexceptTLS

Instantiate an empty rsocket without actually opening a socket, and therefore also without throwing any exceptions (useful in header-file definitions).

Instantiating an empty rsocket is particularly useful for header-file definitions since exceptions can't be handled outside of subroutines, and it's also useful for enabling debug() mode before setting the socket's configuration with one of the socket() methods; for example:

randolf::rsocket r; // Empty rsocket (empty / incomplete initialization)
r.debug(true);      // Enable debug mode
r.socket(...);      // Required to complete rsocket initialization

Notes

The built-in defaults, when not provided, are as follows ("family" is also known as the "communication domain"):

• family = AF_INET
• type = SOCK_STREAM
• protocol = PF_UNSPEC

You will need to use one of the socket(...) methods to specify socket details after defining rsocket objects with empty constructors so that you can catch runtime exceptions. (This also provides you with an option to enable debug mode during runtime prior to attempting to open an rsocket.)

Examples

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

randolf::rsocket r; //   <-- Empty rsocket initialization (no exceptions)

int main(int argc, char *argv[]) {
  try {
    r.socket(AF_INET, SOCK_STREAM, IPPROTO_TCP); //   <-- Required to complete rsocket initialization
    r.setsockopt(SOL_SOCKET, SO_REUSEADDR, true);
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

See also

rsocket()

socket()

socket_family()

socket_fd()

socket_protocol()

socket_type()

rsocket() [2/3]

randolf::rsocket::rsocket ( const rsocket * rtemplate, const bool flag_create_socket = true )

inlineTLS

Instantiate an rsocket based on a minimal subset of the settings in the specified rsocket (using it as a template), without actually opening a socket, and therefore also without throwing any exceptions.

Note

This constructor does not suffice as a full clone()-like operation, and is minimal because it's used internally by the accept() and accept4() methods.

Details that are absorbed from the template/source rsocket (which eliminates the need to assign, set, and configure various parameters (TLS and TLS SNI parameters will be copied in a passive way by default):

• Socket family (SO_DOMAIN)
• Socket type (SO_TYPE)
• Socket protocol (SO_PROTOCOL)
• TLS details (status, context {which includes loaded certificates}, policies specified with TLS_FLAGS, etc.)
• EoL details
• TLS context (you'll still need to call tls_ctx(r->tls_ctx()))
• TLS SNI map (you'll still need to call tls_sni(r->tls_sni()))

Postcondition

The TLS Context will not be initialized because it needs a real socket to draw from. If using TLS, you'll need to use the tls() method after the underlying socket has been initiated.

When flag_create_socket is set to FALSE, no exceptions will be thrown.

See also

rsocket()

socket()

socket_family()

socket_fd()

socket_protocol()

socket_type()

Parameters

rtemplate	Source rsocket object to use as a template to absorb settings from
flag_create_socket	TRUE = create a new socket handle (default) FALSE = don't create a new socket because a new one will be assigned or created later (all variants of the accept() methods do this)

rsocket() [3/3]

randolf::rsocket::rsocket ( const int family, const int type = SOCK_STREAM, const int protocol = PF_UNSPEC )

inlineTLS

Instantiate an rsocket with IP/host address and [optional] port number.

This is either the endpoint that our underlying socket will be connecting to, or it's the local address of the server daemon that our socket will listen() to and accept() inbound connections from.

Notes

The built-in defaults, when not provided, are as follows ("family" is also known as the "communication domain"):

• family = AF_INET
• type = SOCK_STREAM
• protocol = PF_UNSPEC

The socket() methods do the same work as the constructors with matching arguments, and are provided as convenience methods intended to augment empty rsocket constructors used in header files, but do require an address to be specified (for protocols that need port numbers, such as TCP or UDP, a "port" number also needs to be specified since the default port 0 will result in the dynamic allocation of a port number by the system).

For UNIX domain sockets use family AF_UNIX, type SOCK_STREAM, and protocol IPPROTO_IP when instantiating or opening an rsocket.

Examples

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_INET, SOCK_STREAM, IPPROTO_TCP); //   <-- Same as socket() method
    r.setsockopt(SOL_SOCKET, SO_REUSEADDR, true);
    r.bind("127.0.0.1", 32768);
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Exceptions

randolf::rex::xEACCES	Elevated access is needed to open this socket
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xEINVAL	Protocal family invalid or not available
randolf::rex::xEINVAL	Invalid flags in type
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENFILE	System-wide maximum open files limit reached
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xEPROTONOSUPPORT	Specified type or protocol is not supported within the specified family (a.k.a., communication domain)

See also

rsocket()

socket()

Parameters

family	Communication domain; usually one of: AF_INET (IPv4) AF_INET6 (IPv6) AF_UNIX (UNIX domain sockets)
type	Communication semantics; usually one of: SOCK_STREAM (common for TCP) SOCK_DGRAM (common for UDP)
protocol	Network protocol; usually one of: IPPROTO_TCP IPPROTO_UDP IPPROTO_IP PF_UNSPEC (auto-detect)

~rsocket()

randolf::rsocket::~rsocket ( )

inlinenoexceptTLS

Destructor, which closes any underlying sockets, frees any TLS structures that were allocated by OpenSSL, and performs any other necessary clean-up before finally copying the I/O statistics to a designated structure (if one was specified with the net_io_final() method).

Attention

Developers should take care to check that the rsocket_io::is_final flag is set to TRUE prior to relying on the results of the rsocket_io data since there's no guarantee that the destructor will necessarily be executed in a timely manner (this flag is set last, after all other statistics are copied into the structure while in a mutex-locked state).

See also

net_io_final()

Member Function Documentation

accept()

rsocket * randolf::rsocket::accept ( )

inlinePOSIXTLS

Accept new [inbound] socket connetions. (This is typically used in a loop.)

Precondition

The resulting rsocket object is created before the actual call to the accept() function.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Postcondition

To prevent resource leaks, the resulting rsocket needs to be deleted after it's no longer needed.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNABORTED	The connection was aborted
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEHOSTDOWN	Host is down or its network is disconnected
randolf::rex::xEHOSTUNREACH	No route to host
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Socket is not in listen() mode or the length of the address is invalid
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENETDOWN	Network is disconnected or router is down
randolf::rex::xENETUNREACH	No route to network
randolf::rex::xENFILE	System-wide maximum open files limit reached
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENONET	Requested host is not reachable on the network
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOSR	System ran out of stream resources
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPERM	Connection forbidden/denied by firewall rules
randolf::rex::xEPROTO	Protocol error
randolf::rex::xEPROTONOSUPPORT	Specified type or protocol is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xERESTARTSYS	Used in back-end tracing to indicate that a system call is restartable and can be intercepted-and-redirected (there is no need to catch this exception unless you are an advanced developer, in which case you likely still won't need to catch it in code at this level)
randolf::rex::xESOCKTNOSUPPORT	Specified socket type is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xETIMEDOUT	Timeout period elapsed
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and no inbound connections are waiting

Returns

Newly-created rsocket object representing the connection received

See also

accept_sp()

accept4()

accept4_sp()

listen

accept_sp()

std::shared_ptr< rsocket > randolf::rsocket::accept_sp ( )

inlineTLS

Accept new [inbound] socket connetions. (This is typically used in a loop.)

Precondition

The resulting rsocket object is created before the actual call to the accept() function.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Postcondition

The resulting rsocket is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNABORTED	The connection was aborted
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEHOSTDOWN	Host is down or its network is disconnected
randolf::rex::xEHOSTUNREACH	No route to host
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Socket is not in listen() mode or the length of the address is invalid
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENETDOWN	Network is disconnected or router is down
randolf::rex::xENETUNREACH	No route to network
randolf::rex::xENFILE	System-wide maximum open files limit reached
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENONET	Requested host is not reachable on the network
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOSR	System ran out of stream resources
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPERM	Connection forbidden/denied by firewall rules
randolf::rex::xEPROTO	Protocol error
randolf::rex::xEPROTONOSUPPORT	Specified type or protocol is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xERESTARTSYS	Used in back-end tracing to indicate that a system call is restartable and can be intercepted-and-redirected (there is no need to catch this exception unless you are an advanced developer, in which case you likely still won't need to catch it in code at this level)
randolf::rex::xESOCKTNOSUPPORT	Specified socket type is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xETIMEDOUT	Timeout period elapsed
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and no inbound connections are waiting

Returns

Newly-created rsocket object representing the connection received, wrapped in std::shared_ptr (a C++ smart pointer)

See also

accept()

accept4()

accept4_sp()

listen

accept4()

rsocket * randolf::rsocket::accept4 ( const int posix_flags = 0 )

inlinePOSIXTLS

Accept new [inbound] socket connetions, with socket flags specified. (This is typically used in a loop.)

Precondition

The resulting rsocket object is created before the actual call to the accept4() function.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Postcondition

To prevent resource leaks, the resulting rsocket needs to be deleted after it's no longer needed.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNABORTED	The connection was aborted
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEHOSTDOWN	Host is down or its network is disconnected
randolf::rex::xEHOSTUNREACH	No route to host
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Socket is not in listen() mode or the length of the address is invalid
randolf::rex::xEINVAL	Invalid value in flags
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENETDOWN	Network is disconnected or router is down
randolf::rex::xENETUNREACH	No route to network
randolf::rex::xENFILE	System-wide maximum open files limit reached
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENONET	Requested host is not reachable on the network
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOSR	System ran out of stream resources
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPERM	Connection forbidden/denied by firewall rules
randolf::rex::xEPROTO	Protocol error
randolf::rex::xEPROTONOSUPPORT	Specified type or protocol is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xERESTARTSYS	Used in back-end tracing to indicate that a system call is restartable and can be intercepted-and-redirected (there is no need to catch this exception unless you are an advanced developer, in which case you likely still won't need to catch it in code at this level)
randolf::rex::xESOCKTNOSUPPORT	Specified socket type is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xETIMEDOUT	Timeout period elapsed
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and no inbound connections are waiting

Returns

Newly-created rsocket object representing the connection received

See also

accept()

accept_sp()

accept4_sp()

listen

Parameters

posix_flags

SOCK_NONBLOCK SOCK_CLOEXEC

accept4_sp()

std::shared_ptr< rsocket > randolf::rsocket::accept4_sp ( const int posix_flags = 0 )

inlineTLS

Accept new [inbound] socket connetions, with socket flags specified. (This is typically used in a loop.)

Precondition

The resulting rsocket object is created before the actual call to the accept4() function.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Postcondition

The resulting rsocket is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNABORTED	The connection was aborted
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEHOSTDOWN	Host is down or its network is disconnected
randolf::rex::xEHOSTUNREACH	No route to host
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Socket is not in listen() mode or the length of the address is invalid
randolf::rex::xEINVAL	Invalid value in flags
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENETDOWN	Network is disconnected or router is down
randolf::rex::xENETUNREACH	No route to network
randolf::rex::xENFILE	System-wide maximum open files limit reached
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENONET	Requested host is not reachable on the network
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOSR	System ran out of stream resources
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPERM	Connection forbidden/denied by firewall rules
randolf::rex::xEPROTO	Protocol error
randolf::rex::xEPROTONOSUPPORT	Specified type or protocol is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xERESTARTSYS	Used in back-end tracing to indicate that a system call is restartable and can be intercepted-and-redirected (there is no need to catch this exception unless you are an advanced developer, in which case you likely still won't need to catch it in code at this level)
randolf::rex::xESOCKTNOSUPPORT	Specified socket type is not supported within the specified family (a.k.a., communication domain)
randolf::rex::xETIMEDOUT	Timeout period elapsed
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and no inbound connections are waiting

Returns

Newly-created rsocket object representing the connection received, wrapped in std::shared_ptr (a C++ smart pointer)

See also

accept()

accept_sp()

accept4()

listen

Parameters

posix_flags

SOCK_NONBLOCK SOCK_CLOEXEC

backlog() [1/2]

rsocket * randolf::rsocket::backlog ( int backlog = 0 )

inlinenoexceptTLS

Override the default listen backlog for this rsocket.

Note

The default backlog is SOMAXCONN (4096 on Linux, and 128 on older systems).

Returns

The same rsocket object so as to facilitate stacking

See also

listen

Parameters

backlog

Backlog queue size (0 = use SOMAXCONN, which is the system default of 4096 on Linux, and 128 on older systems)

backlog() [2/2]

int randolf::rsocket::backlog ( )

inlinenoexceptTLS

Find out what this rsocket's default listen backlog is.

Returns

The default listen backlog

See also

listen

bind() [1/2]

rsocket * randolf::rsocket::bind ( const struct sockaddr * addr, const socklen_t addrlen = sizeof(sockaddr) )

inlinePOSIXTLS

Bind this socket to the specified network address (and port number if the address family utilizes port numbers {e.g., TCP or UDP}). This is mostly used for server deamons, but can also be used to control the address from which the local host will make an outbound connection via the connect() method (this bound address is the address from which the endpoint will recieve your connection).

Exceptions

randolf::rex::xEACCES	If the port number is below or equal to 1024 (or 1023 on some Operating Systems that test only for below 1024) in the absence of elevated access or the absence of a capability flag having been set
randolf::rex::xEACCES	If binding to an interface on systems that require elevated access for direct interface binding in absence of said elevated access
randolf::rex::xEADDRINUSE	Address and/or port number already in use
randolf::rex::xEADDRNOTAVAIL	The interface doesn't exist or the address is not available on any local interface
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Socket is already bound
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket The following exceptions are specific to AF_UNIX family sockets...
randolf::rex::xEACCES	Write permission or search permission denied on a component of the path prefix (AF_UNIX family)
randolf::rex::xELOOP	Too many symbolic links encountered while resolving address (AF_UNIX family)
randolf::rex::xENAMETOOLONG	Address is too long (AF_UNIX family)
randolf::rex::xENOENT	One of the path's directory components doesn't exist (AF_UNIX family)
randolf::rex::xENOTDIR	One of the path's diretory components is not a directory (AF_UNIX family)
randolf::rex::xEROFS	Read-only file system (AF_UNIX family)

Returns

The same rsocket object so as to facilitate stacking

See also

bind(std::string, int)

connect

listen

Parameters

addr	Socket address structure
addrlen	Length of socket structure

bind() [2/2]

rsocket * randolf::rsocket::bind ( const std::string address, const int port = 0 )

inlineTLS

Bind this socket to the specified network address (and port number if the address family utilizes port numbers {e.g., TCP or UDP}). This is mostly used for server deamons, but can also be used to control the address from which the local host will make an outbound connection via the connect() method (this bound address is address from which the endpoint will recieve your connection).

In addition to the standard IPv4 (AF_INET family) and IPv6 (AF_INET6 family) support, rsocket also supports a few other binding options in a manner that makes it easy to utilize, without having to handle special implementation details (because they're handled behind-the-scenese by this rsocket class).

The address string supports a number of different notations and formats, which are documented, hereunder, with examples:

• IPv4 addresses
• IPv6 addresses
• Network interfaces
• UNIX domain sockets

---

IPv4 address notations (address family AF_INET)

Takes the form of x.x.x.x where each "x" represents an octet in the range of 0 through 255 (e.g., 127.0.0.1).

Under a proper implenetation of TCP/IP, an IPv4 address can be abbreviated to fewer octets. The following examples demonstrate this (an unabbreviated IPv4 address is included for completeness):

• 0.0.0.1 may be abbreviated to 1
• 4.0.0.1 may be abbrevaited to 4.1
• 4.3.0.1 may be abbreviated to 4.3.1
• 4.3.2.1 is not abbreviated (this is the most common usage)

Example of binding to IPv4 localhost

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    r.bind("127.0.0.1", 32768); //   <-- You are here
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xEACCES e) {
    std::cerr << "Socket bind-access exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Note

Specifying the IP address of 0.0.0.0 will bind to all IPv4 addresses that are assigned to all of the host machine's network interfaces with IPv4 bindings.

Specifying the IP address of 127.0.0.1 (localhost) is useful for serving only those applications that are running on the local host and use an IPv4 socket to communicate.

---

IPv6 address notations (address family AF_INET6)

Takes the form of x:x:x:x:x:x:x:x where each "x" represents a segment in the range of 0 through ffff in hexadecimal (e.g., 0:0:0:0:0:0:0:1), or x:x:x:x:x:x:y.y.y.y where y.y.y.y represents an [unabbreviated] IPv4 address (which merely replaces the last two IPv6 segments).

Under a proper implenetation of TCP/IP, an IPv6 address can be abbreviated to fewer segments by using a sequence of two colons (::) to indicate that the undefined segments are 0 (this abbreviation can only be used once, and may represent segments at the beginning or end, or anywhere in between). The following examples demonstrate this (an unabbreviated IPv6 address is included for completeness):

• 0:0:0:0:0:0:0:1 may be abbreviated to ::1
• 0:0:0:0:0:0:2:1 may be abbreviated to ::2:1
• 8:0:0:0:0:0:2:1 may be abbreviated to 8::2:1
• 8:7:0:0:0:0:2:1 may be abbreviated to 8:7::2:1
• 8:7:0:0:0:0:0:0 may be abbreviated to 8:7::
• 8:0:0:0:0:0:0:0 may be abbreviated to 8::
• 8:7:6:5:4:3:2:1 is not abbreviated

Example of binding to IPv6 localhost

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_INET6, SOCK_STREAM, IPPROTO_TCP);
    r.bind("::1", 32768); //   <-- You are here
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xEACCES e) {
    std::cerr << "Socket bind-access exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Note

Specifying the IP address of :: will bind to all IPv6 addresses that are assigned to all of the host machine's network interfaces with IPv6 bindings.

Specifying the IP address of ::1 (localhost) is useful for serving only those applications that are running on the local host and use an IPv6 socket to communicate.

---

Interface address notation (address families AF_INET and AF_INET6)

Takes the form of if=name where "name" represents the name of a local network interface.

Interface binding is useful when binding to interfaces that aren't configured with a static IP address because they were dymamically configured via the Dynamic Host Configuration Protocol (DHCP) or Stateless Address Configuration (SLAAC), or the configuration was changed manually by an administrator and you don't want your software to handle such changes gracefully, even if the new IP address is within the scope of an entirely different CIDR. (Changing between the IPv4 and IPv6 addresses is not supported, however, due to the fundamental differences between these two address families that includes differences beyond that of IP address format, although under a proper implementation of TCP/IP the binding should survive such changes when the IP address is reverted to the initial IP address family of the bound interface.)

Examples of interfaces include:

• if=lo typical for localhost virtual network adapter
• if=bond0 typical for the first bonded virtual network adapter (used in failover and load-balancing network configurations)
• if=br0 typical for the first bridge virtual network adapter
• if=eth0 typical for the first ethernet network adapter
• if=tap0 typical for the first virtual layer 2 ethernet switch (used by VPNs to extend a remote network into the local network stack)
• if=tun0 typical for the first virtual layer 3 ethernet tunnel (used by VPNs to provide access to a remote network)
• if=wlo1 typical for the first wireless network adapter

Example of binding to interface localhost

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    r.bind("if=lo", 32768); //   <-- You are here
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xEACCES e) {
    std::cerr << "Socket bind-access exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Note

This is not a standard feature of the POSIX bind() function. This rsocket class uses the setsockopt() function behind-the-scenes to configure (enable) the SO_BINDTODEVICE option, and then the bind() function is called with the IPv4 address 0.0.0.0 if the underlying socket was initialized to the AF_INET family, or the IPv6 address :: if the underlying socket was initialized to the AF_INET6 family.

Specifying the interface address of if=lo (localhost) is useful for serving only those applications that are running on the local host and use an IPv4 or IPv6 socket to communicate.

---

UNIX Domain Sockets address-notation (address family AF_UNIX)

Takes the form of /path where "/path" represents an absolute path on the local file system (the path can also be relative, in which case it doesn't begin with a slash (/) character, but extra care is needed to ensure that the path will actually be at its expected location).

Example of binding to UNIX domain sockets

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

int main(int argc, char *argv[]) {
  try {
    randolf::rsocket r(AF_UNIX, SOCK_STREAM);
    r.bind("/var/run/rsocket-test-socket.tmp"); //   <-- You are here
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xEACCES e) {
    std::cerr << "Socket bind-access exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

Note

Normal socket I/O functionality is used to exchange data with another process that can open the same UNIX domain socket (normally on the same host, although it may not be outside the realm of possibility for future Linux kernels to support UNIX domain sockets on remote hosts).

---

Exceptions

randolf::rex::xEACCES	If the port number is below or equal to 1024 (or 1023 on some Operating Systems that test only for below 1024) in the absence of elevated access or the absence of a capability flag having been set
randolf::rex::xEACCES	If binding to an interface on systems that require elevated access for direct interface binding in absence of said elevated access
randolf::rex::xEADDRINUSE	Address and/or port number already in use
randolf::rex::xEADDRNOTAVAIL	The interface doesn't exist or the address is not available on any local interface
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Socket is already bound
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket The following exceptions are specific to AF_UNIX family sockets...
randolf::rex::xEACCES	Write permission or search permission denied on a component of the path prefix (AF_UNIX family)
randolf::rex::xELOOP	Too many symbolic links encountered while resolving address (AF_UNIX family)
randolf::rex::xENAMETOOLONG	Address is too long (AF_UNIX family)
randolf::rex::xENOENT	One of the path's directory components doesn't exist (AF_UNIX family)
randolf::rex::xENOTDIR	One of the path's diretory components is not a directory (AF_UNIX family)
randolf::rex::xEROFS	Read-only file system (AF_UNIX family)

Returns

The same rsocket object so as to facilitate stacking

See also

bind(const struct sockaddr*, const socklen_t)

connect

listen

Parameters

address	IPv4 address, IPv6 address, hostname, UNIX domain sockets path, or specialized variant (see notes, above)
port	TCP or UDP port number ranging 1-65535 (0 = ephemeral port; a.k.a., automatic assignment)

buffer_size() [1/2]

const size_t randolf::rsocket::buffer_size ( )

inlinenoexceptTLS

Find out what buffer size is used by the various recv() methods.

Returns

Buffer size (in bytes)

See also

buffer_size(const size_t nbytes)

is_buffered

buffer_size() [2/2]

rsocket * randolf::rsocket::buffer_size ( const size_t nbytes )

inlineTLS

Override the default buffer size (typically 8,192 bytes) used by the various recv() methods.

If resetting to the compiled-in default, use the buffer_size_reset() method instead of setting the value directly. This ensures that future versions, with a different compiled-in default, will be reset to the compiled-in value.

Exceptions

std::overflow_error

If the new size exceeds the amount of data that's already present in the ring buffer

Returns

The same rsocket object so as to facilitate stacking

See also

buffer_size

buffer_size_reset

Parameters

nbytes

Size of the new buffer (in bytes)

buffer_size_reset()

rsocket * randolf::rsocket::buffer_size_reset ( )

inlineTLS

Reset the default buffer size (typically 1024) used by the various recv() methods.

This method is preferred for resetting to the compiled-in default instead of setting the value directly. This ensures that future versions, with a different compiled-in default, will be reset to the compiled-in value.

Exceptions

std::overflow_error

If the new size exceeds the amount of data that's already present in the ring buffer

Returns

The same rsocket object so as to facilitate stacking

See also

buffer_size(const size_t nbytes)

close()

rsocket * randolf::rsocket::close ( )

inlinePOSIXTLS

Close this rsocket. (If this rsocket was already closed, then calling this method additional times will have no effect, and will not cause exceptions to be thrown.)

Warning

This method may throw exceptions in some circumstances, which is extremely rare. If you prefer to close without having to contend with any exceptions (e.g., while calling close() from within a destructor), the close_passive() method will return an integer indicating success/failure instead of throwing an exception, and then you'll have to handle errno manually (which is useful in destructors because any error can merely be handled procedurally).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEIO	An I/O error occurred

Returns

The same rsocket object so as to facilitate stacking

See also

is_closed()

close_passive()

int randolf::rsocket::close_passive ( )

inlinenoexceptTLS

Close this rsocket without throwing any exceptions (an error code is returned instead, which is useful while calling close_passive() from within a destructor).

Returns

0 = success

-1 = error (errno will be set accordingly)

See also

is_closed()

connect()

rsocket * randolf::rsocket::connect ( const std::string address, const int port = 0 )

inlinePOSIXTLS

Connect this socket to a specific endpoint (which may differ from this rsocket's address that was previously configured by the bind() method).

Exceptions

randolf::rex::xEADDRINUSE	Address and/or port number already in use
randolf::rex::xEADDRNOTAVAIL	No ephemeral ports are available for assignment to unbound socket
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xEAGAIN	Insufficient entries in the routing cache
randolf::rex::xEALREADY	Previous connection attempt not completed on nonblocking socket
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINPROGRESS	Connection cannot be completed immediately on nonblocking socket (AF_UNIX family fails with xEAGAIN instead)
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEISCONN	Socket is already connected
randolf::rex::xENETUNREACH	No route to network
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEPERM	Connection forbidden/denied by firewall rules
randolf::rex::xEPERM	Can't connect to a broadcast address when the socket's broadcast flag isn't enabled
randolf::rex::xEPROTOTYPE	Socket type doesn't support the requested communications protocol (e.g., connecting a UNIX domain socket of type SOCK_STREAM to an endpoint expecting type SOCK_DGRAM)
randolf::rex::xETIMEDOUT	Timeout period elapsed The following exceptions are specific to AF_UNIX family sockets...
randolf::rex::xEACCES	Write permission or search permission denied on a component of the path prefix (AF_UNIX family)
randolf::rex::xEAGAIN	Connection cannot be completed immediately on nonblocking socket (AF_UNIX family)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_do_handshake()

Parameters

address	IPv4 address, IPv6 address, hostname, or UNIX domain sockets path
port	TCP or UDP port number ranging 1-65535 (0 = ephemeral port; a.k.a., automatic assignment)

debug() [1/4]

const bool randolf::rsocket::debug ( )

inlinenoexceptTLS

Find out whether debug mode is enabled.

Threads

This method is threadsafe.

Returns

TRUE = enabled

FALSE = not enabled

debug() [2/4]

const int randolf::rsocket::debug ( const bool debug_flag, std::FILE * fd = stderr )

inlinenoexceptTLS

Debug mode. When debug mode is enabled, output is sent to stderr by default, unless a second parameter specifies a different file handle (e.g., stdout, or even a socket).

debug(...) returns -1 if fd can't be written to (errno will be set in accordance with std::fprintf's behaviour since std::fprintf is used for writing debug output). Normally we'd throw an exception for such errors, but with debug is a special case because debugging needs to be as quick and convenient as possible for developers.

debug(...) returns -2 if writing to stderr failed when attempting to announce that fd can't be written to (as described above).

debug(...) returns -3 if some other error occurs (e.g., internal formatting error {which should not happen} or memory allocation failed, in which case there's a more serious problem that will be causing other problems elsewhere anyway).

Developers may add their own debug messages by using debug(std::string), which will only be written out if debug mode is enabled. This same method is used internally, so messages will be indistinguishable from developer's messages.

Threads

This method is thread-safe.

Returns

0 = success

-1 = error writing to stream (errno will be set accordingly)

-2 = error writing to stderr (errno will be set accordingly)

-3 = error (errno will be set accordingly)

Parameters

debug_flag	TRUE = enable debug mode FALSE = disable debug mode (does not close any file handles)
fd	File descriptor/handle to use for debug output

debug() [3/4]

const int randolf::rsocket::debug ( const char * msg )

inlinenoexceptTLS

Send the specified message as debug output (as long as debug mode is enabled; if disabled, no debug output will be sent).

Returns

0 = success

-1 = error writing to stream (errno will be set accordingly)

-2 = error writing to stderr (errno will be set accordingly)

-3 = error (errno will be set accordingly)

Parameters

msg	Debug message as an ASCIIZ string

debug() [4/4]

const int randolf::rsocket::debug ( const std::string msg )

inlinenoexceptTLS

Send the specified message as debug output (as long as debug mode is enabled; if disabled, no debug output will be sent).

Returns

0 = success

-1 = error writing to stream (errno will be set accordingly)

-2 = error writing to stderr (errno will be set accordingly)

-3 = error (errno will be set accordingly)

Parameters

msg	Debug message as an ASCIIZ string

Parameters

msg	Debug message as an std::string object

debug_fd() [1/2]

const std::FILE * randolf::rsocket::debug_fd ( )

inlinenoexcept

Find out which file descriptor/handle is used for debug output.

Returns

file handle/descriptor currently used for debug output

debug_fd() [2/2]

const int randolf::rsocket::debug_fd ( std::FILE * fd )

inlinenoexcept

Specify a different file descriptor/handle to use for debug output.

Returns

0 = success

-1 = error writing to stream (errno will be set accordingly)

-2 = error writing to stderr (errno will be set accordingly)

-3 = error (errno will be set accordingly)

Parameters

fd	File descriptor/handle to use for debug output

debug_prefix() [1/2]

const std::string randolf::rsocket::debug_prefix ( )

inlinenoexceptTLS

Find out what the current prefix is set to that's used in debug output.

This may be set at any time, including before or after enabling or disabling debug mode.

Returns

debug prefix string

debug_prefix() [2/2]

rsocket * randolf::rsocket::debug_prefix ( const std::string prefix )

inlinenoexceptTLS

Change the prefix used in debug output.

Returns

The same rsocket object so as to facilitate stacking

Parameters

prefix

New debug prefix string

discard()

int randolf::rsocket::discard ( int nbytes, int posix_flags = 0, const size_t memory_size = 0 )

inlineTLS

Discards the specified number of 8-bit bytes efficiently, and without closing the stream, and without consuming excessive quantities of memory.

Exceptions

randolf::rex::xERANGE

An invalid value was specified for either the nbytes or memory_size parameter (e.g., a negative value, except for -1 with the nbytes parameter)

Returns

Number of bytes that were successfully discarded

See also

buffer_size

recv

Parameters

nbytes	Number of bytes to discard 0 = use internal buffer_size() -1 = all remaining data waiting to be received (in other words, this method will repeatedly consume all data until encountering eos)
posix_flags	MSG_OOB MSG_PEEK (ignored, to prevent an endless loop) MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC
memory_size	Maximum internal read size 0 = default to buffer_size (when nbytes is larger than this size, multiple reads into this buffer will be utilized behind-the-scenes to consume the quantity of data specified by the nbytes parameter)

discard_line()

int randolf::rsocket::discard_line ( int nbytes = -1, int posix_flags = 0, long timeout = 0, const size_t memory_size = 0 )

inlineTLS

Discards the specified number of 8-bit bytes efficiently, but stops upon encountering an EoL sequence (which will also be discarded; to find out which EoL sequence was consumed, use the eol_consumed_seq method which will also return an empty string if no EoL sequence was consumed), and without closing the stream, and without consuming excessive quantities of memory.

This method is particularly useful for discarding lines that are too long, which, for example, makes it possible to ignore lines that are too long (and optionally present or log an error) and continue reading the next line(s) that follow.

Exceptions

randolf::rex::xERANGE

An invalid value was specified for either the nbytes or memory_size parameter (e.g., a negative value, except for -1 with the nbytes parameter)

Returns

Number of bytes that were successfully discarded

See also

buffer_size

recv

Parameters

nbytes	Number of bytes to discard 0 = use internal buffer_size() -1 = all remaining data waiting to be received (in other words, this method will repeatedly consume all data until encountering eos)
posix_flags	MSG_OOB MSG_PEEK (ignored, to prevent an endless loop) MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC
timeout	Line timeout (in seconds) 0 = no timeout (default), unless it was configured by way of the timeout_recvline(long) method
memory_size	Maximum internal read size 0 = default to buffer_size (when nbytes is larger than this size, multiple reads into this buffer will be utilized behind-the-scenes to consume the quantity of data specified by the nbytes parameter)

eol() [1/3]

const std::string randolf::rsocket::eol ( )

inlinenoexceptTLS

Find out what the current EoL (End of Line) sequence is set to.

Warning

To send an EoL sequence do not use send(r.eol()) because it may not be initialized yet and the endpoint you're sending to may seem unresponsive or other unexpected behaviour may occur.

To send an EoL sequence properly, use sendline(); although specifying no parameters is more efficient than specifying an empty string (""), the specialized send_eol() method is the most efficient option for sending an EoL sequence separately.

Note

An empty EoL sequence means that CRLF will be sent by sendline(), and that recvline(), and recv_rline() will automatically detect from one of CR, CRLF, LF, and LFCR.

Returns

Current EoL sequence

See also

eol_adoption

eol_fix_printf

printfline

recvline

recv_rline

sendline

send_eol

vprintfline

eol() [2/3]

rsocket * randolf::rsocket::eol ( const char * eol )

inlinenoexceptTLS

Set EoL (End of Line) sequence. This sequence is used by recvline(), recv_rline(), sendline(), and related functions, and it defaults to an empty string which results in the EoL sequence being detected automatically on-the-fly.

• "" (empty string) = automatically detect on-the-fly (default)
• \r\n (CRLF) = Carriage Return + Linefeed (typical for DOS)
• \r (CR) = Carriage Return (typical for MacOS)
• \n (LF) = Linefeed (typical for UNIX/Linux)

Note

CRLF (\r\n) is used by most internet protocols (e.g., HTTP, SMTP, POP3, IMAP4, FINGER, NICNAME/WHOIS, etc.).

Returns

The same rsocket object so as to facilitate stacking

See also

eol_adoption

eol_fix_printf

printfline

vprintfline

recv_rline

recvline

sendline

send_eol

Parameters

eol	EoL sequence as an ASCIIZ string

eol() [3/3]

rsocket * randolf::rsocket::eol ( const std::string eol )

inlinenoexceptTLS

Set EoL (End of Line) sequence. This sequence is used by recvline(), recv_rline(), sendline(), and related functions, and it defaults to an empty string which results in the EoL sequence being detected automatically on-the-fly.

• "" (empty string) = automatically detect on-the-fly (default)
• \r\n (CRLF) = Carriage Return + Linefeed (typical for DOS)
• \r (CR) = Carriage Return (typical for MacOS)
• \n (LF) = Linefeed (typical for UNIX/Linux)

Note

CRLF (\r\n) is used by most internet protocols (e.g., HTTP, SMTP, POP3, IMAP4, FINGER, NICNAME/WHOIS, etc.).

Returns

The same rsocket object so as to facilitate stacking

See also

eol_fix_printf

printfline

vprintfline

recv_rline

recvline

sendline

send_eol

Parameters

eol	EoL sequence as an std::string object

eol_adoption()

rsocket * randolf::rsocket::eol_adoption ( const bool flag )

inlinenoexceptTLS

Configure EoL adoption policy for the recvline() and recv_rline() methods. By default, rsocket is configured with the EoL adoption policy enabled alongside an empty eol() sequence, which results in the default operation being that the EoL sequence automatically gets detected and updated internally upon the first use of either the recvline() or recv_rline method.

The EoL adoption policy is only effective when the eol() sequence is not defined (which is indicated by an empty EoL sequence string).

The EoL sequence is updated only when the EoL sequence string is empty, and when this EoL adoption policy is enabled.

Returns

The same rsocket object so as to facilitate stacking

See also

eol

eol_index

is_eol_adoption

recv_rline

recvline

sendline

send_eol

Parameters

flag	TRUE = enable EoL adoption (default) FALSE = disable EoL adoption

eol_consumed_seq()

const std::string randolf::rsocket::eol_consumed_seq ( )

inlinenoexceptTLS

Returns a String containing the EoL character sequence that was consumed by the most recent successful call to the recvline() or recv_rline method ("successful" in this context means that the received line was terminated by a valid EoL character sequence; otherwise the previous/unmodified value is returned).

Warning

This method must not be used to determine whether the recvline() method successfully consumed an EoL character sequence.  The reason for this is that recvline() doesn't update this string when it doesn't consume an EoL character sequence, hence interpreting its results can (and likely will) lead to false positives.

Returns

EoL character sequence

See also

eol

eol_adoption

recv_rline

recvline

eol_fix_printf()

rsocket * randolf::rsocket::eol_fix_printf ( const bool flag )

inlinenoexceptTLS

Configure EoL substitution policy for the printf(), printfline(), vprintf(), and vprintfline() methods. By default, rsocket substitutes printf's \n sequence with the EoL sequence (if defined), but this method can be used to disable this behaviour.

Note

The \n sequence used in the printf format string normally coincides with the local Operating System's newline standard, which is very likely different from the rsocket endpoint's newline standard, and/or the newline standard of the protocol being implemented. This policy setting makes it possible to control whether to use the configured EoL sequence when sending a formatted string to the endpoint.

Returns

The same rsocket object so as to facilitate stacking

See also

eol

is_eol_fix_printf

printf

printfline

vprintf

vprintfline

Parameters

flag	TRUE = enable EoL substitution (default) FALSE = disable EoL substitution

eol_index()

const int randolf::rsocket::eol_index ( const std::string buffer, int * with_eol_size )

inlinenoexceptTLS

Finds the first instance of the EoL sequence and returns its offset (which is effectively the same as the size of the text, not including the characters that the EoL sequence is comprised of).

Note

This method is specialized primarily for internal use by the recvline() and recv_rline() methods, but is made available here in case there's a need to check in-memory text using this rsocket's EoL detection policy.

Returns

Size of EoL sequence

-1 if EoL sequence wasn't found

See also

eol

eol_adoption

Parameters

buffer	Buffer that probably contains at least one EoL sequence
with_eol_size	Size of string with EoL character sequence included (will be updated by this method)

eos()

const bool randolf::rsocket::eos ( const int timeout = 0 )

inlineTLS

Find out if the stream is at its end and that this rsocket's internal buffer (if one had been set up by the recvline() method) is empty. This doesn't necessarily mean that the stream is closed; but rather that the endpoint just hasn't sent any more data (yet).

If the stream isn't open, then this method will always return true to implicitly indicate that there's no data pending to be received.

Precondition

You can optionally specify a timeout with the timeout parameter, which will cause this method to wait for the specified period of time for pending data.

It's better (more efficient) to use this method instead of the MSG_PEEK flag (with the various recv methods) to determine whether any data is waiting on the stream (e.g., data that's received by the sockets, but not by any recv methods yet) because this method is specialized in handling this particular condition and responds with an easy-to-use boolean flag.

Note

EoS is an acronym for: End of Stream

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xETIMEDOUT	Timeout period elapsed (even if the TIMEOUT_BEHAVIOUR flag is not set to TIMEOUT_EXCEPTION, there is a highly improbable chance that a timeout could still occur if the data is read by another thread before the recv(..., MSG_PEEK) call)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

TRUE = End of Stream (no buffered data, the stream is_closed(), or there's no pending data, checked in this order)

FALSE = Pending data available

See also

is_closed

is_open

recv

Parameters

timeout

Number of milliseconds to wait

family()

static int randolf::rsocket::family ( const std::string address, const int preferred_family = AF_UNSPEC )

inlinestaticTLS

Find out what the specified IP address string's family (SO_DOMAIN) is.

Exceptions

randolf::rex::xEADDRNOTAVAIL	The interface doesn't exist or the address is not available on any local interface
randolf::rex::xEAI_NONAME	If address is an empty string

Returns

AF_UNSPEC (if family couldn't be determined)

AF_INET (IPv4 address)

AF_INET6 (IPv6 address)

AF_UNIX (UNIX Domain address)

...or other family as applicable

Parameters

address	Address, similar to bind() addressing, including non-standard "if=" variant that names a network interface
preferred_family	Preferred family to return first (used only with interface mode where the network interface is specified after the "if=" prefix); the default value of AF_UNSPEC will return the first family interface found

getpeername()

const std::shared_ptr< sockaddr_storage > randolf::rsocket::getpeername ( )

inlinePOSIXTLS

Get peer name returns the address of the socket as a sockaddr_storage structure.

The resulting structure is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

sockaddr_storage structure

getpeername_ntop()

const std::string randolf::rsocket::getpeername_ntop ( )

inlineTLS

Get peer name returns the address of the socket as a std::string object.

Exceptions

randolf::rex::xEAI_ADDRFAMILY	if the address can't be determined (e.g., because the family doesn't utilize or support an address {or the format isn't known}
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOSPC	Resulting address string exceeds maximum size
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

string representation of peer name

getsockaddr()

static sockaddr * randolf::rsocket::getsockaddr ( const sockaddr_storage * sa )

inlinestaticPOSIXTLS

Get specified "sockaddr_storage" structure's address as a "sockaddr" structure, for sockets in one of the supported families:

• AF_INET (IPv4)
• AF_INET6 (IPv6)
• AF_UNIX (Domain socket path)
• AF_PACKET (Ethernet node/mac. address)

Exceptions

randolf::rex::xEAI_ADDRFAMILY

if the address can't be determined (e.g., because the family doesn't utilize or support an address {or the format isn't known}

Returns

pointer to sockaddr structure within provided sockaddr_storage

See also

bind

mk_sockaddr_storage

recvfrom

sendto

sendzto

Parameters

sa	The sockaddr_storage structure wherein sockaddr will be referenced from

getsockname()

const std::shared_ptr< sockaddr_storage > randolf::rsocket::getsockname ( )

inlinePOSIXTLS

Get socket name returns the address of the socket as a "sockaddr_storage" structure.

The resulting structure is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

sockaddr_storage structure

getsockname_ntop()

const std::string randolf::rsocket::getsockname_ntop ( )

inlineTLS

Get socket name returns the name of the socket as a std::string object.

Exceptions

randolf::rex::xEAI_ADDRFAMILY	if the address can't be determined (e.g., because the family doesn't utilize or support an address {or the format isn't known}
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOSPC	Resulting address string exceeds maximum size
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

string representation of socket name

getsockopt_int()

int randolf::rsocket::getsockopt_int ( const int level, const int option )

inlineTLS

Get socket option details in the form of an integer.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_u_int()

u_int randolf::rsocket::getsockopt_u_int ( const int level, const int option )

inlineTLS

Get socket option details in the form of an unsigned integer.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_u_char()

u_char randolf::rsocket::getsockopt_u_char ( const int level, const int option )

inlineTLS

Get socket option details in the form of an unsigned character.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_linger()

std::shared_ptr< linger > randolf::rsocket::getsockopt_linger ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_timeval()

std::shared_ptr< timeval > randolf::rsocket::getsockopt_timeval ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_in_addr()

std::shared_ptr< in_addr > randolf::rsocket::getsockopt_in_addr ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_ip_mreq()

std::shared_ptr< ip_mreq > randolf::rsocket::getsockopt_ip_mreq ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_ip_mreq_source()

std::shared_ptr< ip_mreq_source > randolf::rsocket::getsockopt_ip_mreq_source ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_icmp6_filter()

std::shared_ptr< icmp6_filter > randolf::rsocket::getsockopt_icmp6_filter ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_sockaddr_in6()

std::shared_ptr< sockaddr_in6 > randolf::rsocket::getsockopt_sockaddr_in6 ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_ip6_mtuinfo()

std::shared_ptr< ip6_mtuinfo > randolf::rsocket::getsockopt_ip6_mtuinfo ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_ipv6_mreq()

std::shared_ptr< ipv6_mreq > randolf::rsocket::getsockopt_ipv6_mreq ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_group_req()

std::shared_ptr< group_req > randolf::rsocket::getsockopt_group_req ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_group_source_req()

std::shared_ptr< group_source_req > randolf::rsocket::getsockopt_group_source_req ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

getsockopt_other()

template<class T >

std::shared_ptr< T > randolf::rsocket::getsockopt_other ( const int level, const int option )

inlineTLS

Get socket option details in the form of a structure.

Most options return an integer, with the remaining options returning a pointer to a structure wrapped in a std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks); the primitive types int, u_int, and u_char are not wrapped in C++ smart pointers because returning them by value is more efficient since allocating memory for an entire structure isn't needed.

Postcondition

It is up to the developer to know which return type is needed according to the socket option, otherwise an exception will likely be thrown – in some cases where the wrong type will seem to work, this is due to the wrong type providing a minimally sufficient amount of memory for the storage of the resulting structure.

Notes

The returned values/structures are not marked as "const" because they may need to be modified for unforseen purposes. Modifying the returend values or structures is fine because they are intended to be independent and are expected to have no direct impact on the rsocket's internal variables and structures.

Templates in C++ aren't used here because they don't work properly for our needs due to neccesity to handle both fundamental types and structures; it turns out that mixing these is impossible when using the same function name, so this just doesn't work as well as we'd like it to. (We may try to work on this again in the future as time permits to provide an additional method for obtaining socket options, but with the intention of never removing this current set of methods so as to ensure backward compatibility in the future.)

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

socket option value

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Returns

socket option structure wrapped in std::shared_ptr

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.

inet_ntop() [1/2]

const std::string randolf::rsocket::inet_ntop ( )

inlinePOSIXTLS

Get underlying socket's address as a std::string, for sockets in one of the supported families:

• AF_INET (IPv4)
• AF_INET6 (IPv6)
• AF_UNIX (Domain socket path)
• AF_PACKET (Ethernet node/mac. address)

Exceptions

randolf::rex::xEAI_ADDRFAMILY	if the address can't be determined (e.g., because the family doesn't utilize or support an address {or the format isn't known}
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xENOSPC	Resulting address string exceeds maximum size

Returns

string representation of underlying socket's address

See also

inet_ntop(sockaddr_storage*) static method

inet_ntop() [2/2]

static const std::string randolf::rsocket::inet_ntop ( sockaddr_storage * sa )

inlinestaticPOSIXTLS

Get specified "sockaddr_storage" structure's address as a std::string, for sockets in one of the supported families:

• AF_INET (IPv4)
• AF_INET6 (IPv6)
• AF_UNIX (Domain socket path)
• AF_PACKET (Ethernet node/mac. address)

Exceptions

randolf::rex::xEAI_ADDRFAMILY	if the address can't be determined (e.g., because the family doesn't utilize or support an address {or the format isn't known}
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xENOSPC	Resulting address string exceeds maximum size

Returns

string representation of underlying socket's address

See also

inet_ntop() non-static method

Parameters

sa	Source structure that [should] contain address data

is_buffered()

const bool randolf::rsocket::is_buffered ( )

inlinenoexceptTLS

Find out whether an internal read buffer was allocated (this is most likely triggered by an attempt to read a line of text).

Note

The buffer_size() methods report on how much memory was allocated for the internal read buffer or to set its size (in bytes).

Returns

TRUE = an internal read buffer was allocated

FALSE = an internal read buffer was not allocated

See also

buffer_size

buffer_size(const size_t nbytes)

is_closed()

const bool randolf::rsocket::is_closed ( )

inlinenoexceptTLS

Find out whether the underlying socket is not open (which may not be the same as specifically "closed" since a newly instantiated empty socket begins in a "not open" state despite the underlying socket not explicitly having been closed).

Returns

TRUE = not open

FALSE = open

See also

is_open()

is_connected()

const bool randolf::rsocket::is_connected ( )

inlinenoexceptTLS

Find out whether the underlying socket is connected with/to an endpoint.

Returns

TRUE = open

FALSE = not open

is_endian_lsb()

const bool randolf::rsocket::is_endian_lsb ( )

inlinenoexceptTLS

Find out whether the default byte order for this host is LSB (small endian).

Note

If you're trying to choose which endian type to use when designing a new internet protocol, then big endian is normally the better option. However, if your new protocol will only be used by hardware that all share the same endianness, then that endianness is probably the more optimal option since it will translate to an overall lesser consumption of CPU cycles by reducing or eliminating endianness conversions.

Returns

TRUE = LSB (little endian)

FALSE = MSB (big endian / network byte order)

is_endian_msb()

const bool randolf::rsocket::is_endian_msb ( )

inlinenoexceptTLS

Find out whether the default byte order for this host is MSB (big endian).

Note

Big endian is the standard known as "network byte order" that's also used in various header fields in internet packets.

If you're trying to choose which endian type to use when designing a new internet protocol, then big endian is normally the better option. However, if your new protocol will only be used by hardware that all share the same endianness, then that endianness is probably the more optimal option since it will translate to an overall lesser consumption of CPU cycles by reducing or eliminating endianness conversions.

Returns

TRUE = MSB (big endian / network byte order)

FALSE = LSB (little endian)

is_eol_adoption()

const bool randolf::rsocket::is_eol_adoption ( )

inlinenoexceptTLS

Find out if the EoL adoption policy is enabled for the recvline() method (see the eol_adoption method to find out how the dynamically-detected EoL sequence gets adopted, and under what conditions).

Returns

TRUE = EoL adoption is enabled

FALSE = EoL adoption is disabled

See also

eol

eol_adoption

eol_index

recvline

sendline

send_eol

is_eol_fix_printf()

const bool randolf::rsocket::is_eol_fix_printf ( )

inlinenoexceptTLS

Find out if the EoL substitution policy is enabled for the printf(), printfline(), vprintf(), and vprintfline() methods.

Returns

TRUE = EoL substitution is enabled

FALSE = EoL substitution is disabled

See also

eol

eol_fix_printf

printf

printfline

sendline

send_eol

vprintf

vprintfline

is_open()

const bool randolf::rsocket::is_open ( )

inlinenoexceptTLS

Find out whether the underlying socket is open.

Returns

TRUE = open

FALSE = not open

See also

is_closed()

is_tls()

const bool randolf::rsocket::is_tls ( )

inlinenoexceptTLS

Find out whether encrypted communications is enabled or disabled.

Returns

TRUE = encrypted communications is enabled

FALSE = encrypted communications is disabled

See also

tls(bool, TLS_FLAGS)

is_tls_client_mode()

const bool randolf::rsocket::is_tls_client_mode ( )

inlinenoexceptTLS

Find out whether TLS context is in TLS_CLIENT mode.

Returns

TRUE = TLS context is in TLS_CLIENT mode

FALSE = TLS context is in TLS_SERVER mode

See also

TLS_CLIENT

tls()

is_tls_egress_okay()

const bool randolf::rsocket::is_tls_egress_okay ( )

inlinenoexceptTLS

Find out whether egress from encryption (to unencrypted mode) is allowed.

Returns

TRUE = egress from encrypted communications is allowed

FALSE = egress from encrypted communications is not allowed

See also

TLS_NO_EGRESS

tls()

is_tls_exclusive()

const bool randolf::rsocket::is_tls_exclusive ( )

inlinenoexceptTLS

Find out whether encrypted communications is exclusive.

Returns

TRUE = encrypted communications is exclusive

FALSE = encrypted communications is not exclusive

See also

tls()

is_tls_ingress_okay()

const bool randolf::rsocket::is_tls_ingress_okay ( )

inlinenoexceptTLS

Find out whether ingress to encryption (from unencrypted mode) is allowed.

Returns

TRUE = ingress to encrypted communications is allowed

FALSE = ingress to encrypted communications is not allowed

See also

TLS_NO_INGRESS

tls()

is_tls_server_mode()

const bool randolf::rsocket::is_tls_server_mode ( )

inlinenoexceptTLS

Find out whether TLS context is in TLS_SERVER mode.

Returns

TRUE = TLS context is in TLS_SERVER mode

FALSE = TLS context is in TLS_CLIENT mode

See also

TLS_SERVER

tls()

is_tls_sni()

const bool randolf::rsocket::is_tls_sni ( )

inlinenoexceptTLS

Find out whether SNI (Server Name Identifier) is enabled (configured, which implies that an internal callback function was also set up).

Returns

TRUE = SNI is enabled

FALSE = SNI is disabled

See also

tls_sni()

is_tls_sni_match()

const bool randolf::rsocket::is_tls_sni_match ( )

inlinenoexceptTLS

Find out whether SNI (Server Name Identifier) was matched, which means that we're using one of the supplementary TLS certificates that are included in the associated rsocket_sni object as separate TLS contexts.

When this method returns TRUE, it means the OpenSSL callback (which occurs during the TLS handshake process) completed the TLS handshake with one of the TLS certificates that's included in this rsocket's rsocket_sni object instead of the primary TLS certificate assigned to this rsocket, and this rsocket is using the respective TLS context instead of the primary (default) one.

Returns

TRUE = SNI was matched

FALSE = SNI wasn't matched

See also

name_sni

tls_sni

listen()

rsocket * randolf::rsocket::listen ( int backlog = 0 )

inlinePOSIXTLS

Enable listening mode for this rsocket to prepare it to accept() new inbound connections.

The backlog defaults to SOMAXCONN (4096 on Linux, and 128 on older systems), which is common on most systems. If a higher value is supplied that exceeds kern.somaxconn, the kernel will automatically override the backlog with the value stored in kern.somaxconn without generating any errors or warnings.

Exceptions

randolf::rex::xEADDRINUSE	Address and/or port number already in use
randolf::rex::xEADDRINUSE	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM

Returns

The same rsocket object so as to facilitate stacking

See also

accept()

accept_sp()

accept4()

accept4_sp()

backlog()

bind()

Parameters

backlog

Backlog queue size (0 = uses rsocket's default; see backlog for more details about this); specifying a non-zero backlog also updates rocket's internal default (SOMAXCONN is 4096 on Linux, and 128 on older systems)

mk_sockaddr_storage() [1/4]

static std::shared_ptr< sockaddr_storage > randolf::rsocket::mk_sockaddr_storage ( const char * node_name, const char * service_name = nullptr, const addrinfo * hints = nullptr )

inlinestatic

Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.

If service_name is an absolute path (that begins with a "/" charcter) and the family is set to AF_UNSPEC (the default), then the resulting family will be set to AF_UNIX.

Notes

This method utilizes the results of getaddrinfo().

Other families like AF_LINK and AF_PACKET should work, but haven't been tested thoroughly. The additional support we provide for IPv4 and IPv6 addresses is to copy the port number into the resulting structure (as a convenience).

Postcondition

The resulting sockaddr_storage structure is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Threads

This method is thread-safe.

Exceptions

randolf::rex::xEAI_ADDRFAMILY	If specified network host doesn't have any addresses in the specified address family
randolf::rex::xEAI_AGAIN	Temporary failure code from DNS server (try again later)
randolf::rex::xEAI_BADFLAGS	Invalid flags in hints.ai_flags (or hints.ai_flags included AI_CANONNAME with nullptr as name)
randolf::rex::xEAI_FAIL	Permanent failure code from DNS server
randolf::rex::xEAI_FAMILY	The specified family is not supported
randolf::rex::xEAI_MEMORY	Out of memory
randolf::rex::xEAI_NONAME	If node_name is nullptr or an empty string
randolf::rex::xEAI_SERVICE	The specified service is not available for the specified socket type
randolf::rex::xEAI_SOCKTYPE	The specified socket type is not supported
randolf::rex::xEAI_SYSTEM	Other system error (use errno to determine what the error is, then run use randolf::rex::rex::mk_exception to throw the correct exception)

Returns

sockaddr_storage structure

See also

getsockaddr

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number (or service name used by some other families)
hints	Optional pointer to a helpful addrinfo structure

mk_sockaddr_storage() [2/4]

static std::shared_ptr< sockaddr_storage > randolf::rsocket::mk_sockaddr_storage ( const char * node_name, const u_int16_t service_name, const addrinfo * hints = nullptr )

inlinestatic

Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.

If service_name is an absolute path (that begins with a "/" charcter) and the family is set to AF_UNSPEC (the default), then the resulting family will be set to AF_UNIX.

Notes

This method utilizes the results of getaddrinfo().

Other families like AF_LINK and AF_PACKET should work, but haven't been tested thoroughly. The additional support we provide for IPv4 and IPv6 addresses is to copy the port number into the resulting structure (as a convenience).

Postcondition

The resulting sockaddr_storage structure is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Threads

This method is thread-safe.

Exceptions

randolf::rex::xEAI_ADDRFAMILY	If specified network host doesn't have any addresses in the specified address family
randolf::rex::xEAI_AGAIN	Temporary failure code from DNS server (try again later)
randolf::rex::xEAI_BADFLAGS	Invalid flags in hints.ai_flags (or hints.ai_flags included AI_CANONNAME with nullptr as name)
randolf::rex::xEAI_FAIL	Permanent failure code from DNS server
randolf::rex::xEAI_FAMILY	The specified family is not supported
randolf::rex::xEAI_MEMORY	Out of memory
randolf::rex::xEAI_NONAME	If node_name is nullptr or an empty string
randolf::rex::xEAI_SERVICE	The specified service is not available for the specified socket type
randolf::rex::xEAI_SOCKTYPE	The specified socket type is not supported
randolf::rex::xEAI_SYSTEM	Other system error (use errno to determine what the error is, then run use randolf::rex::rex::mk_exception to throw the correct exception)

Returns

sockaddr_storage structure

See also

getsockaddr

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number (or service name used by some other families)
hints	Optional pointer to a helpful addrinfo structure

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number
hints	Optional pointer to a helpful addrinfo structure

mk_sockaddr_storage() [3/4]

static std::shared_ptr< sockaddr_storage > randolf::rsocket::mk_sockaddr_storage ( const std::string node_name, const u_int16_t service_name, const addrinfo * hints = nullptr )

inlinestatic

Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.

If service_name is an absolute path (that begins with a "/" charcter) and the family is set to AF_UNSPEC (the default), then the resulting family will be set to AF_UNIX.

Notes

This method utilizes the results of getaddrinfo().

Other families like AF_LINK and AF_PACKET should work, but haven't been tested thoroughly. The additional support we provide for IPv4 and IPv6 addresses is to copy the port number into the resulting structure (as a convenience).

Postcondition

The resulting sockaddr_storage structure is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Threads

This method is thread-safe.

Exceptions

randolf::rex::xEAI_ADDRFAMILY	If specified network host doesn't have any addresses in the specified address family
randolf::rex::xEAI_AGAIN	Temporary failure code from DNS server (try again later)
randolf::rex::xEAI_BADFLAGS	Invalid flags in hints.ai_flags (or hints.ai_flags included AI_CANONNAME with nullptr as name)
randolf::rex::xEAI_FAIL	Permanent failure code from DNS server
randolf::rex::xEAI_FAMILY	The specified family is not supported
randolf::rex::xEAI_MEMORY	Out of memory
randolf::rex::xEAI_NONAME	If node_name is nullptr or an empty string
randolf::rex::xEAI_SERVICE	The specified service is not available for the specified socket type
randolf::rex::xEAI_SOCKTYPE	The specified socket type is not supported
randolf::rex::xEAI_SYSTEM	Other system error (use errno to determine what the error is, then run use randolf::rex::rex::mk_exception to throw the correct exception)

Returns

sockaddr_storage structure

See also

getsockaddr

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number (or service name used by some other families)
hints	Optional pointer to a helpful addrinfo structure

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number
hints	Optional pointer to a helpful addrinfo structure

mk_sockaddr_storage() [4/4]

static std::shared_ptr< sockaddr_storage > randolf::rsocket::mk_sockaddr_storage ( const std::string node_name, const std::string service_name, const addrinfo * hints = nullptr )

inlinestatic

Convert an IPv4 address, IPv6 address, ethernet packet, or UNIX domain socket to a sockaddr_storage structure.

If service_name is an absolute path (that begins with a "/" charcter) and the family is set to AF_UNSPEC (the default), then the resulting family will be set to AF_UNIX.

Notes

This method utilizes the results of getaddrinfo().

Other families like AF_LINK and AF_PACKET should work, but haven't been tested thoroughly. The additional support we provide for IPv4 and IPv6 addresses is to copy the port number into the resulting structure (as a convenience).

Postcondition

The resulting sockaddr_storage structure is wrapped in std::shared_ptr (a C++ smart pointer that aids in the prevention of resource leaks).

Threads

This method is thread-safe.

Exceptions

randolf::rex::xEAI_ADDRFAMILY	If specified network host doesn't have any addresses in the specified address family
randolf::rex::xEAI_AGAIN	Temporary failure code from DNS server (try again later)
randolf::rex::xEAI_BADFLAGS	Invalid flags in hints.ai_flags (or hints.ai_flags included AI_CANONNAME with nullptr as name)
randolf::rex::xEAI_FAIL	Permanent failure code from DNS server
randolf::rex::xEAI_FAMILY	The specified family is not supported
randolf::rex::xEAI_MEMORY	Out of memory
randolf::rex::xEAI_NONAME	If node_name is nullptr or an empty string
randolf::rex::xEAI_SERVICE	The specified service is not available for the specified socket type
randolf::rex::xEAI_SOCKTYPE	The specified socket type is not supported
randolf::rex::xEAI_SYSTEM	Other system error (use errno to determine what the error is, then run use randolf::rex::rex::mk_exception to throw the correct exception)

Returns

sockaddr_storage structure

See also

getsockaddr

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number (or service name used by some other families)
hints	Optional pointer to a helpful addrinfo structure

Parameters

node_name	IP address or UNIX domain socket address to convert
service_name	Port number (or server name used by some other families)
hints	Optional pointer to a helpful addrinfo structure

name() [1/2]

rsocket * randolf::rsocket::name ( const std::string name )

inlinenoexcept

Specify a name for this rsocket.

This is an arbitrary name that is entirely optional, and should be regarded as similar to the naming of threads.

Returns

The same rsocket object so as to facilitate stacking

Parameters

name	Name to assign to this rsocket

name() [2/2]

std::string randolf::rsocket::name ( )

inlinenoexcept

Find out what this rsocket's name is.

The built-in SNI mechanism will overwrite this data to indicate the hostname that was specified by the TLS-encrypted endpoint that triggered an internal SNI callback – use the name_sni() method to find out which hostname is actually being used by TLS.

Returns

The name of this rsocket (or an empty std::string if this rsocket doesn't have a name)

See also

name_sni

tls_sni

name_sni()

std::string randolf::rsocket::name_sni ( )

inlinenoexceptTLS

Find out what this rsocket's actual TLS SNI hostname is.

This is the exact - or closest-matching (in the case of wildcards) - hostname associated with an actual TLS certificate that was provided in the configured rsocket_sni object.

Returns

The hostname associated with the TLS certificate selected by SNI

See also

name

tls_sni

net_io() [1/2]

std::shared_ptr< rsocket_io > randolf::rsocket::net_io ( )

inlinenoexceptTLS

Get socket I/O statistics from internally-tracked socket I/O counters.

The number of bytes transmitted and received is tracked internally, so that the information can be used later in logging. These statistics are available at all times, but for logging purposes it makes the most sense to copy this information after the rsocket is closed, at which time the final statistics will continue to be available until the rsocket's destructor takes over.

Threads

This method is threadsafe.

Returns

rsocket_io wrapped in a std::shared_ptr object to help ease memory management efforts

See also

net_io_final

net_io_update

printf

net_io() [2/2]

std::string randolf::rsocket::net_io ( const char * format, size_t len = 0, rsocket_io * addr = nullptr )

inlinenoexceptTLS

Get socket I/O statistics from internally-tracked socket I/O counters as a pre-formatted std::string object.

The number of bytes transmitted and received is tracked internally, so that the information can be used later in logging. These statistics are available at all times, but for logging purposes it makes the most sense to copy this information after the rsocket is closed, at which time the final statistics will continue to be available until the rsocket's destructor takes over.

Formatting

The format string may contain any characters, with only instances of the following case-sensitive command sequences to be interpolated accordingly (invalid commands will be ignored and will remain in place, unmodified):

Command	Replacement text	Data source (rsocket_io)
$$	One dollar sign ("$")	N/A
$aR	Total (all) bytes received	bytes_rx + crypt_rx
$aT	Total (all) bytes transmitted	bytes_tx + crypt_tx
$bR	Unencrypted bytes received	bytes_rx
$bT	Unencrypted bytes transmitted	bytes_tx
$cR	Encrypted bytes recevied	crypt_rx
$cT	Encrypted bytes transmitted	crypt_tx
Command	Replacement text	Data source (rsocket_io)

Why do we use dollar signs instead of percent symbols, like other formatting functions like printf() does? So that the format string won't be in conflict with any percent-prefixed commands in printf() and similar funcions. This means that a printf() format string can be put through a first pass here to get the needed statistics interpolated into the needed positions.

Threads

This method is threadsafe.

Returns

An interpolated format string as an std::string object.

See also

net_io_final

net_io_update

printf

Parameters

format	Format string
len	Length of format string (in bytes), or 0 to auto-detect length if format string is an ASCIIZ string
addr	Pointer to an rsocket_io structure to read the statistics from (nullptr = use internal copy of current statistics)

net_io_final()

rsocket * randolf::rsocket::net_io_final ( rsocket_io * addr )

inlinenoexceptTLS

Where the destructor should save final I/O statistics before this rsocket's resources are completely freed/deallocated.

Attention

Developers should take care to check that the rsocket_io::is_final flag is set to TRUE prior to relying on the results of the rsocket_io data since there's no guarantee that the destructor will necessarily be executed in a timely manner (this flag is set last, after all other statistics are copied into the structure while in a mutex-locked state).

Returns

The same rsocket object so as to facilitate stacking

See also

~rsocket

net_io

net_io_update

printf

Parameters

addr	Pointer to rsocket_io structure (nullptr = disabled)

net_io_update()

rsocket * randolf::rsocket::net_io_update ( rsocket_io * addr )

inlinenoexceptTLS

Where the destructor should save current I/O statistics.

Attention

Statistics are copied into the structure while in a mutex-locked state, but the copy itself is not an overall atomic snapshot of the I/O statistics even though each statistic is copied atomically. This means that the actual statistics could be slightly different if updates occur independently (e.g., due to activities in a different thread), but this likely won't matter since the anticipated use for these statistics is to display or otherwise present general statistical information to a user at regular intervals.

Returns

The same rsocket object so as to facilitate stacking

See also

~rsocket

net_io

net_io_final

printf

Parameters

addr	Pointer to rsocket_io structure (nullptr = do nothing)

pending()

ulong randolf::rsocket::pending ( )

inlineTLS

Return the number of bytes pending to be received, without actually receiving any data.

Note

When using TLS, OpenSSL may not report all the pending data, but this is resolved here by also adding the total amount of pending raw data that is not currently being processed in the current record by OpenSSL, even when "read ahead" is enabled.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Socket is not in listen() mode or the
randolf::rex::xENOTTY	The underlying socket is not associated with a character special device, or the specified operation does not apply to the kind of object that the file descriptor fd references (this exception will probably never occur unless the underlying socket handle was arbitrarily replaced with the type of handle that can cause this error to occur)

Returns

Total number of bytes pending (0 = none)

See also

eos

recv

poll()

short randolf::rsocket::poll ( const short events = POLLIN, const int timeout = 0, const bool timeout_behaviour = TIMEOUT_EXCEPTION )

inlinePOSIXTLS

Poll the underlying socket using the poll() method for data that's ready for receiving (default), etc.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Exceptions

randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xETIMEDOUT	Timeout period elapsed (even if the TIMEOUT_BEHAVIOUR flag is not set to TIMEOUT_EXCEPTION, there is a highly improbable chance that a timeout could still occur if the data is read by another thread before the recv(..., MSG_PEEK) call)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

The resulting (short)pollfd.revents bitfield

0 if timeout_behaviour is set to TIMEOUT_ZERO

See also

ppoll

rsocket_mux

Parameters

events	Events bitfield (e.g., POLLIN, POLLOUT, and POLLERR)
timeout	Number of milliseconds to wait
timeout_behaviour	Timeout behaviour (see TIMEOUT_BEHAVIOUR for details)

port()

const uint16_t randolf::rsocket::port ( )

inlinenoexceptTLS

Get port number associated with underlying socket descriptor/handle.

Returns 0 if:

• an emphemeral port number assignment (dynamic) is intended
• the underlying socket details are not defined (e.g., in the case of an empty rsocket instantiation)
• port numbers are not supported/utilized by the current family (e.g., not AF_INET {IPv4} or AF_INET6 {IPv6})

The port number can be set in most constructors, or via one of the socket() or bind() methods.

Returns

Port number (typically TCP and UDP, although some other families such as SCTP and DCCP also utilize port numbers)

See also

socket_family()

socket_protocol()

socket_type()

ppoll() [1/2]

short randolf::rsocket::ppoll ( const short events = POLLIN, const struct timespec * tmo_p = nullptr, const sigset_t * sigmask = nullptr, const bool timeout_behaviour = TIMEOUT_EXCEPTION )

inlinePOSIXTLS

Poll the underlying socket using the ppoll() method for data that's ready for receiving (default), etc.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Exceptions

randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xETIMEDOUT	Timeout period elapsed (even if the TIMEOUT_BEHAVIOUR flag is not set to TIMEOUT_EXCEPTION, there is a highly improbable chance that a timeout could still occur if the data is read by another thread before the recv(..., MSG_PEEK) call)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

The resulting (short)pollfd.revents bitfield

See also

poll

rsocket_mux

Parameters

events	Events bitfield (e.g., POLLIN, POLLOUT, and POLLERR)
tmo_p	Timeout
sigmask	Signal mask
timeout_behaviour	Timeout behaviour (see TIMEOUT_BEHAVIOUR for details)

ppoll() [2/2]

short randolf::rsocket::ppoll ( const short events = POLLIN, const int tv_sec = 0, const long tv_nsec = 0, const sigset_t * sigmask = nullptr, const bool timeout_behaviour = TIMEOUT_EXCEPTION )

inlineTLS

Poll the underlying socket using the ppoll() method for data that's ready for receiving (default), etc.

Note

The rsocket_mux class provides methods that support poll(), ppoll(), select(), and accept()/accept4() when using multiple sockets.

Exceptions

randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xETIMEDOUT	Timeout period elapsed (even if the TIMEOUT_BEHAVIOUR flag is not set to TIMEOUT_EXCEPTION, there is a highly improbable chance that a timeout could still occur if the data is read by another thread before the recv(..., MSG_PEEK) call)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

The resulting (short)pollfd.revents bitfield

See also

ppoll

rsocket_mux

Parameters

events	Events bitfield (e.g., POLLIN, POLLOUT, and POLLERR)
tv_sec	Timeout in seconds
tv_nsec	Timeout in nanoseconds
sigmask	Signal mask
timeout_behaviour	Timeout behaviour (see TIMEOUT_BEHAVIOUR for details)

printf()

rsocket * randolf::rsocket::printf ( const char * format, ... )

inlinePOSIXTLS

Send a formatted string to the rsocket endpoint.

The format is described in the documentation for the POSIX or Standard C Library printf() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEILSEQ	An invalid wide-character code was detected
randolf::rex::xEOVERFLOW	The value returned is greater than {INT_MAX}
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENOMEM	Insufficient memory

Returns

The same rsocket object so as to facilitate stacking

See also

eol_fix_printf

is_eol_fix_printf

net_io

printfline

vprintf

vprintfline

Parameters

format	Format string to use
...	Variadic arguments

printfline()

rsocket * randolf::rsocket::printfline ( const char * format, ... )

inlineTLS

Send a formatted string to the rsocket endpoint, and append an EoL sequence.

The format is described in the documentation for the POSIX or Standard C Library printf() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEILSEQ	An invalid wide-character code was detected
randolf::rex::xEOVERFLOW	The value returned is greater than {INT_MAX}
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENOMEM	Insufficient memory

Returns

The same rsocket object so as to facilitate stacking

See also

eol

eol_fix_printf

is_eol_fix_printf

net_io

printf

sendline

vprintf

vprintfline

Parameters

format	Format string to use
...	Variadic arguments

recv() [1/2]

std::vector< char > randolf::rsocket::recv ( const size_t nbytes = 0, const int posix_flags = 0 )

inlineTLS

Receive data from the endpoint into a std::vector<char> that is allocated on-the-fly.

If nbytes is 0, then the internal buffer_size() will be used as the default, which can also be changed from its compiled-in default of 1024 by using one of the buffer_size() methods.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

appropriately-sized vector of characters

See also

recv(std::vector<char>, const int)

recvz(const size_t, const int)

Parameters

nbytes	Maximum number of bytes to receive
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv() [2/2]

std::vector< char > randolf::rsocket::recv ( std::vector< char > buf, const int posix_flags = 0 )

inlinePOSIXTLS

Receive data from the endpoint into the std::vector object supplied in the buf parameter.

The maximum number of bytes that can be received won't exceed the number of bytes that the supplied std::vector<char> was initialized or resized to.

Precondition

For std::vector it's important that the resize() method is used to pre-allocate the underlying char[] array, instead of the unfortunately-named reserve() method that doesn't pre-allocate, to avoid causing segmentation faults or other undefined behaviours.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

The same array that was specified in the buf parameter

See also

recv(const size_t, const int)

recvz(const size_t, const int)

Parameters

buf	Target std::vector<char> to receive data into
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_as_string()

std::string randolf::rsocket::recv_as_string ( const size_t nbytes = 0, const int posix_flags = 0 )

inlineTLS

Receive data from the endpoint into a std::string object that is allocated on-the-fly.

If nbytes is 0, then the internal buffer_size() will be used as the default, which can also be changed from its compiled-in default of 1024 by using one of the buffer_size() methods.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

appropriately-sized vector of characters

See also

recv

recv(std::vector<char>, const int)

recvz(const size_t, const int)

Parameters

nbytes	Maximum number of bytes to receive
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_asciiz()

char * randolf::rsocket::recv_asciiz ( const size_t nbytes = 0, const int posix_flags = 0 )

inlineTLS

Receive an ASCIIZ string from the endpoint, including the NULL terminator.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xERANGE	if no NULL terminator is detected (this may occur before the underlying ASCIIZ string char* array is allocated)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

Pointer to ASCIIZ string (will need to be deleted by caller)

See also

send_asciiz(const char*, const int)

Parameters

nbytes	Maximum number of bytes to receive
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_byte()

u_char randolf::rsocket::recv_byte ( const int posix_flags = 0 )

inlineTLS

Receive one byte (unsigned 8-bit byte) of data from the endpoint.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

one unsigned character

See also

recv(std::vector<char>, const int)

recvz(const size_t, const int)

recv_char

send_byte

send_char

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_char()

char randolf::rsocket::recv_char ( const int posix_flags = 0 )

inlineTLS

Receive one character (signed 8-bit byte) of data from the endpoint.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

one signed character

See also

recv(std::vector<char>, const int)

recvz(const size_t, const int)

recv_byte

send_byte

send_char

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_rline()

randolf::rline randolf::rsocket::recv_rline ( const size_t nbytes = 0, const int posix_flags = 0, long timeout = 0, const int recvline_flags = RECVLINE_FLAGS::RECVLINE_DEFAULT )

inlineTLS

Receive a line of data from the endpoint, into an randolf::rline object with the EoL character(s) isolated. While this is meant for ASCII and UTF-8 text, it will also work with binary data that doesn't include EoL character sequences as non-line-ending data (when receiving binary data, the recv() and recvz() methods tend to be better-suited).

This is essentially a wrapper around what recvline() does, but returns both the line of text and the EoL sequence together in an randolf::rline object.

Note

For additional details on the other parameters, please see the recvline method's documentation for the remaining details.

Warning

If you're using a customzied EoL sequence, then it's important to note that it probably won't be recognized by the randolf::rline class, but do also check that documentation to confirm this.

Exceptions

randolf::rex::xEAGAIN	If timeout occurs before EoL
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOVERFLOW	if the line is too long; in other words, if no EoL character sequence is detected after recvline's buffer became full (whatever data is waiting may still be received using any of the recv_ methods {with or without the MSG_PEEK flag set}, including recvline() with a larger buffer {see the nbytes parameter})
randolf::rex::xERANGE	if the timeout parameter is below 0
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

One line of text as a randolf::rline object.

See also

discard

eol()

eol_consumed_seq()

randolf::rline

recvline

sendline(const std::string, const int)

timeout

timeout_recvline

timeout_recvline(long)

Parameters

nbytes	Maximum number of bytes to receive (including EoL character sequence)
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC
timeout	Line timeout (in seconds) 0 = no timeout (default), unless it was configured by way of the timeout_recvline(long) method
recvline_flags	Configuration parameters

recv_struct()

template<typename T >

T randolf::rsocket::recv_struct ( const int posix_flags = 0 )

inlineTLS

Receive a data structure from the endpoint.

Postcondition

MSB/LSB considerations are important for any integers within your structure, so be sure to sanitize them with htons(), ntohs(), and related methods prior to sending, and then after receiving. This way, your data will be protected against corruption resulting from byte order differences when communicating between hardware architectures that differ in MSB and LSB byte ordering.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

Data structure

See also

send_struct

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_uint16_lsb()

uint16_t randolf::rsocket::recv_uint16_lsb ( const int posix_flags = 0 )

inlineTLS

Receive one 16-bit unsigned integer of data in LSB (little endian) order from the endpoint.

Notes

The MSG_WAITALL flag is used behind-the-scenes to prevent premature data reception, which implements temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

uint16_t (converted to local endianness)

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_uint16_msb()

uint16_t randolf::rsocket::recv_uint16_msb ( const int posix_flags = 0 )

inlineTLS

Receive one 16-bit unsigned integer of data in MSB (big endian) order from the endpoint.

Notes

The MSG_WAITALL flag is used behind-the-scenes to prevent premature data reception, which implements temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

uint16_t (converted to local endianness)

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_uint32_lsb()

uint32_t randolf::rsocket::recv_uint32_lsb ( const int posix_flags = 0 )

inlineTLS

Receive one 32-bit unsigned integer of data in LSB (little endian) order from the endpoint.

Notes

The MSG_WAITALL flag is used behind-the-scenes to prevent premature data reception, which implements temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

uint32_t (converted to local endianness)

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_uint32_msb()

uint32_t randolf::rsocket::recv_uint32_msb ( const int posix_flags = 0 )

inlineTLS

Receive one 32-bit unsigned integer of data in MSB (big endian) order from the endpoint.

Notes

The MSG_WAITALL flag is used behind-the-scenes to prevent premature data reception, which implements temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

uint32_t (converted to local endianness)

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_uint64_lsb()

uint64_t randolf::rsocket::recv_uint64_lsb ( const int posix_flags = 0 )

inlineTLS

Receive one 64-bit unsigned integer of data in LSB (little endian) order from the endpoint.

Notes

The MSG_WAITALL flag is used behind-the-scenes to prevent premature data reception, which implements temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

uint64_t (converted to local endianness)

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recv_uint64_msb()

uint64_t randolf::rsocket::recv_uint64_msb ( const int posix_flags = 0 )

inlineTLS

Receive one 64-bit unsigned integer of data in MSB (big endian) order from the endpoint.

Notes

The MSG_WAITALL flag is used behind-the-scenes to prevent premature data reception, which implements temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

uint64_t (converted to local endianness)

Parameters

posix_flags

MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recvfrom()

std::vector< char > randolf::rsocket::recvfrom ( const size_t nbytes, const int posix_flags, struct sockaddr * from, socklen_t fromlen = sizeof(sockaddr) )

inlinePOSIX

Receive data from a specific endpoint.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Warning

This method is not compatible with TLS.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

Appropriately-sized vector of characters

Parameters

nbytes	Maximum number of bytes to receive
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC
from	Target endpoint address structure
fromlen	Size of target endpoint structure

recvline()

std::string randolf::rsocket::recvline ( const size_t nbytes = 0, const int posix_flags = 0, long timeout = 0, const int recvline_flags = RECVLINE_FLAGS::RECVLINE_DEFAULT )

inlineTLS

Receive a line of data from the endpoint, with the EoL character(s) removed. While this is meant for ASCII and UTF-8 text, it will also work with binary data that doesn't include EoL character sequences as non-line-ending data (when receiving binary data, the recv() and recvz() methods tend to be better-suited).

If nbytes is 0, then the internal buffer_size will be used as the default, which can also be changed from its compiled-in default of 1024 by using one of the buffer_size() methods. The total number of bytes received, including the EoL sequence, will not exceed the total number of byte specified with the nbytes parameter.

Warning

For nbytes the EoL character sequence size should be included, especially for shorter lines – if the EoL character sequence is detected automatically on-the-fly (which is the default), then provisioning 2 characters is needed since an EoL sequence could be 1 or 2 characters long (line lengths shorter than 3 characters could be particularly problematic when detecting on-the-fly EoL character sequences). In such a case, a better approach is to allow for 2 additional characters and then test the length of the returned string to ensure it doesn't exceed whatever the required maximum is (and throw the same randolf::rex::xEOVERFLOW exception if the length is exceeded).

For more information about which characters an EoL sequence is comprised of, and how our specialized support for multiple EoL sequences works, see the documentation for the various eol methods.

Precondition

When setting the recvline timeout (either with the timeout parameter with this method, or by using the timeout_recvline(long) method), you may also need to set the socket timeout beforehand using the timeout() method, because recvline doesn't do this...

timeout_recvline sets the overall total timeout for an entire line to be entered
timeout sets the timeout between individual characters received (such as keystrokes from a live end-user)

If your socket timeout is longer than then recvline timeout, this will have the effect of rendering the recvling timeout as ineffective.

The timeout parameter can be used to override the total overall timeout for receiving a line, which is useful for specific situations where a specific timeout is desired for particular prompts, during certain data entry stages, etc.

Postcondition

When a line is not found (randolf::rex::xEAGAIN), or a line is too long because there's too much data (longer than a line) without an EoL sequence (randolf::rex::xOVERFLOW), then that data will not be discarded or consumed, and will remain ready for receiving (recv) or for discarding discard).

Notes

If you're searching for a readline() method for socket I/O, then this is most likely what you're wanting/needing.

Exceptions

randolf::rex::xEAGAIN	If timeout occurs before EoL
randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOVERFLOW	if the line is too long; in other words, if no EoL character sequence is detected after recvline's buffer became full (whatever data is waiting may still be received using any of the recv_ methods {with or without the MSG_PEEK flag set}, including recvline() with a larger buffer {see the nbytes parameter})
randolf::rex::xERANGE	if the timeout parameter is below 0
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

One line of text as a std::string object.

See also

discard

eol()

eol_consumed_seq()

recv_rline

sendline(const std::string, const int)

timeout

timeout_recvline

timeout_recvline(long)

Parameters

nbytes	Maximum number of bytes to receive (including EoL character sequence) 0 = use internal buffer_size()
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC
timeout	Line timeout (in seconds) 0 = no timeout (default), unless it was configured by way of the timeout_recvline(long) method
recvline_flags	Configuration parameters

recvmsg()

msghdr * randolf::rsocket::recvmsg ( msghdr * msg, const int posix_flags = 0 )

inlinePOSIX

Receive data in the form of a "msghdr" structure.

Warning

This method is not compatible with TLS.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

pointer to "msghdr" structure

Parameters

msg	Pointer to "msghdr" structure (or nullptr for automatic allocation)
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

recvmmsg()

mmsghdr * randolf::rsocket::recvmmsg ( struct mmsghdr * mmsg, const unsigned int vlen = sizeof(mmsghdr), const int posix_flags = 0, struct timespec * timeout = {0} )

inlinePOSIX

Receive data in the form of an "mmsghdr" structure.

Warning

This method is not compatible with TLS.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

pointer to "mmsghdr" structure

Parameters

mmsg	Pointer to "mmsghdr" structure (or nullptr for automatic allocation)
vlen	Size of target endpoint structure
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB
timeout	Timeout

recvz()

std::vector< char > randolf::rsocket::recvz ( const size_t nbytes = 0, const int posix_flags = 0 )

inlineTLS

Receive data from the endpoint, and add a 0 (null) onto the end. This is useful when using the resulting std::vector<char> as an ASCIIZ string.

If nbytes is 0, then the internal buffer_size will be used as the default, which can also be changed from its compiled-in default of 1024 by using one of the buffer_size() methods.

Postcondition

The resulting std::vector size is always inflated by 1. This means that relying on a comparison against 0 will result in an infinite loop:

for (std::vector<char> v = r.recvz(); v.size > 0; v = recvz()) { ... }

So, you'll need to compare against 1 instead of 0 to compensate fot the inflated size due to the addition of null character 0:

for (std::vector<char> v = r.recvz(); v.size > 1; v = recvz()) { ... }

Warning

The resulting size of std::vector<char> will be nbytes + 1 which ensures that any string processing functions or presentation libraries - such as printf() - expecting an ASCIIZ string buffer will stop at null (0), and will reliably output no more than the maximum size specified.

The way to think of this is that nbytes specifies the maximum number of bytes (a.k.a., characters) to recieve over the underlying socket, and the final 0 (null) being added is not included in the maximum specified by the nbytes parameter.

Notes

The MSG_WAITALL flag is particularly useful for preventing premature data reception, but it's important to note that it does implement temporary blocking while waiting for data.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNREFUSED	Remote address is not listening for new connections
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data

Returns

appropriately-sized vector of characters + 1 (includes additional null terminator character 0)

See also

recv(const size_t, const int)

recv(std::vector<char>, const int)

Parameters

nbytes	Maximum number of bytes to receive
posix_flags	MSG_OOB MSG_PEEK MSG_WAITALL MSG_DONTWAIT MSG_CMSG_CLOEXEC

send() [1/3]

rsocket * randolf::rsocket::send ( const std::string msg, const int posix_flags = 0 )

inlineTLS

Send data in the form of a std::string to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send() [2/3]

rsocket * randolf::rsocket::send ( const std::vector< char > msg, const int posix_flags = 0 )

inlineTLS

Send data in the form of a std::vector<char> to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send() [3/3]

rsocket * randolf::rsocket::send ( const char * msg, size_t len = 0, const int posix_flags = 0 )

inlinePOSIXTLS

Send data in the form of a C-string to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Pointer to data to send
len	Number of bytes to send, or 0 to auto-detect length if message is an ASCIIZ string
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_asciiz()

rsocket * randolf::rsocket::send_asciiz ( const char * msg, const int posix_flags = 0 )

inlineTLS

Send data in the form of an ASCIIZ string to the endpoint, including the terminating NULL character.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

See also

recv_asciiz(const size_t, const int)

sendz(const char*, const int) which doesn't transmit the terminating NULL character

Parameters

msg	Pointer to data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_byte()

rsocket * randolf::rsocket::send_byte ( const u_char value, const int posix_flags = 0 )

inlineTLS

Send one 8-bit byte (one unsigned character) of data to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

See also

recv_byte

recv_char

send_char

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_char()

rsocket * randolf::rsocket::send_char ( const char value, const int posix_flags = 0 )

inlineTLS

Send one signed character (one 8-bit byte) of data to the endpoint.

Returns

The same rsocket object so as to facilitate stacking

See also

recv_byte

recv_char

send_byte

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_eol()

rsocket * randolf::rsocket::send_eol ( const int posix_flags = 0 )

inlineTLS

Send the EoL sequence to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

posix_flags

MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_struct()

template<typename T >

rsocket * randolf::rsocket::send_struct ( const T value, const int posix_flags = 0 )

inlineTLS

Send a data structure to the endpoint.

Precondition

MSB/LSB considerations are important for any integers within your structure, so be sure to sanitize them with htons(), ntohs(), and related methods prior to sending, and then after receiving. This way, your data will be protected against corruption resulting from byte order differences when communicating between hardware architectures that differ in MSB and LSB byte ordering.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

See also

recv_struct

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_uint16_lsb()

rsocket * randolf::rsocket::send_uint16_lsb ( const uint16_t value, const int posix_flags = 0 )

inlineTLS

Send one 16-bit unsigned integer of data in LSB (little endian) order to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_uint16_msb()

rsocket * randolf::rsocket::send_uint16_msb ( const uint16_t value, const int posix_flags = 0 )

inlineTLS

Send one 16-bit integer of data in MSB (big endian) order to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_uint32_lsb()

rsocket * randolf::rsocket::send_uint32_lsb ( const uint32_t value, const int posix_flags = 0 )

inlineTLS

Send one 32-bit unsigned integer of data in LSB (little endian) order to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_uint32_msb()

rsocket * randolf::rsocket::send_uint32_msb ( const uint32_t value, const int posix_flags = 0 )

inlineTLS

Send one 32-bit unsigned integer of data in MSB (big endian) order to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_uint64_lsb()

rsocket * randolf::rsocket::send_uint64_lsb ( const uint64_t value, const int posix_flags = 0 )

inlineTLS

Send one 64-bit unsigned integer of data in LSB (little endian) order to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

send_uint64_msb()

rsocket * randolf::rsocket::send_uint64_msb ( const uint64_t value, const int posix_flags = 0 )

inlineTLS

Send one 64-bit unsigned integer of data in MSB (big endian) order to the endpoint.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

value	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

sendline()

rsocket * randolf::rsocket::sendline ( const std::string msg = std::string(), const int posix_flags = 0 )

inlineTLS

Send data in the form of a std::string to the endpoint, with an EoL sequence appended.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

See also

eol

printfline

recvline(const size_t, const int)

vprintfline

Parameters

msg	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

sendmsg()

rsocket * randolf::rsocket::sendmsg ( const struct msghdr * msg, const int posix_flags = 0 )

inlinePOSIX

Send data in the form of a "msghdr" structure to a specific endpoint.

Warning

This method is not compatible with TLS.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Pointer to data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

sendmmsg()

rsocket * randolf::rsocket::sendmmsg ( struct mmsghdr * mmsg, const unsigned int vlen = sizeof(mmsghdr), const int posix_flags = 0 )

inlinePOSIX

Send data in the form of a "mmsghdr" structure to a specific endpoint.

Warning

This method is not compatible with TLS.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

mmsg	Pointer to data to send
vlen	Size of target endpoint structure
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

sendto() [1/2]

rsocket * randolf::rsocket::sendto ( const std::string msg, const int posix_flags, const struct sockaddr * to, socklen_t tolen = sizeof(sockaddr) )

inlinePOSIX

Send data in the form of a std::string to a specific endpoint.

Warning

This method is not compatible with TLS.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB
to	Target endpoint address structure
tolen	Size of target endpoint structure

sendto() [2/2]

rsocket * randolf::rsocket::sendto ( const char * msg, const size_t len, const int posix_flags, const struct sockaddr * to, socklen_t tolen = sizeof(sockaddr) )

inlinePOSIX

Send data in the form of a C-string to a specific endpoint.

Warning

This method is not compatible with TLS.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Pointer to data to send
len	Number of bytes to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB
to	Target endpoint address structure
tolen	Size of target endpoint structure

sendz()

rsocket * randolf::rsocket::sendz ( const char * msg, const int posix_flags = 0 )

inlineTLS

Send data in the form of an ASCIIZ string to the endpoint. The terminating NULL character won't be transmitted.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

See also

recvz(const size_t, const int)

send_asciiz(const char*, const int) which also transmits the terminating NULL character

Parameters

msg	Pointer to data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB

sendzto()

rsocket * randolf::rsocket::sendzto ( const char * msg, const int posix_flags, const struct sockaddr * to, socklen_t tolen = sizeof(sockaddr) )

inline

Send data in the form of an ASCIIZ string to a specific endpoint. The terminating NULL character won't be transmitted.

Warning

This method is not compatible with TLS.

Threads

This method is threadsafe.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xECONNRESET	Connect reset by peer
randolf::rex::xEDESTADDRREQ	Socket is not connected to an endpoint
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINTR	Interrupted by a signal
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xEISCONN	Socket is already connected (this shouldn't occur, but the POSIX sockets documentation lists it as one of the errors that can be returned, perhaps because some incorrectly implemented TCP/IP stacks return this error?)
randolf::rex::xEMSGSIZE	Message data exceeds the maximum size to be sent atomically (the maximum size is typically 65,507 bytes for IPv4 and 65,527 bytes for IPv6)
randolf::rex::xENOBUFS	Output queue is full, mostly likely due to network congestion (or, less commonly, insufficient memory)
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket
randolf::rex::xEOPNOTSUPP	Underlying socket is no of type SOCK_STREAM
randolf::rex::xEPIPE	Connection-oriented socket was shut down on the local end (and SIGPIPE will also be received if MSG_NOSIGNAL isn't set)
randolf::rex::xEWOULDBLOCK	The underlying socket is non-blocking and there's no new data
randolf::rex::xEWOULDBLOCK	No ephemeral ports are available for assignment to unbound socket (should be randolf::rex::xEADDRNOTAVAIL, but it really isn't)

Returns

The same rsocket object so as to facilitate stacking

Parameters

msg	Pointer to data to send
posix_flags	MSG_DONTROUTE MSG_DONTWAIT MSG_EOR MSG_NOSIGNAL MSG_OOB
to	Target endpoint address structure
tolen	Size of target endpoint structure

setsockopt() [1/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const int value )

inlinePOSIXTLS

Set socket option to the specific integer.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to

setsockopt() [2/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const u_int value )

inlineTLS

Set socket option to the specific unsigned integer.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to

Precondition

For any values that require a u_int, you'll need to explicitly cast this type when specifying the value directly; for example: (u_int)32768

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to

setsockopt() [3/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const u_char value )

inlineTLS

Set socket option to the specific unsigned character.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to

setsockopt() [4/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const linger & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [5/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const timeval & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [6/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const in_addr & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [7/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const ip_mreq & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [8/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const ip_mreq_source & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [9/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const icmp6_filter & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [10/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const sockaddr_in6 & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [11/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const ip6_mtuinfo & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [12/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const ipv6_mreq & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [13/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const group_req & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

setsockopt() [14/14]

rsocket * randolf::rsocket::setsockopt ( const int level, const int option, const group_source_req & value )

inlineTLS

Set socket option to the specific structure.

Notes

These setsockopt() methods take an integer or character value directly, or a pointer to a structure, and then rsocket handles the remaining tedious technical details behind-the-scenes for you when calling the underlying socket's setsockopt() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The value that this socket option will be set to
level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

Parameters

level	The level at which the option resides; typically SOL_SOCKET
option	The name of the option, such as SO_REUSEADDR, SO_LINGER, etc.
value	The structure that this socket option will be set to

shutdown()

rsocket * randolf::rsocket::shutdown ( const int how = SHUT_RDWR, const bool tls_shutdown = true )

inlinePOSIXTLS

Shut down the underlying socket, partially or fully.

SHUT_RD:	Further receives will be disallowed.
SHUT_WR:	Further sends will be disallowed (this may cause actions specific to the protocol family of the socket to occur).
SHUT_RDWR:	Further sends and receives will be disallowed (default).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEINVAL	Invalid argument passed
randolf::rex::xENOTCONN	Underlying socket is not connected
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

how	SHUT_RD SHUT_RW SHUT_RDWR (default)
tls_shutdown	Shutdown the TLS connection too (but only if it's alrady enabled), which is the default (disabling this will usually result in errors for the endpoint upon raw socket shutdown)

socket()

rsocket * randolf::rsocket::socket ( const int family, const int type = SOCK_STREAM, const int protocol = PF_UNSPEC )

inlinePOSIXTLS

Complete the configuration of an rsocket that was previously initialized without any parameters (a.k.a., an "empty rsocket").

Instantiating an empty rsocket is particularly useful for header-file definitions since exceptions can't be handled outside of subroutines, and it's also useful for enabling debug() mode before setting the socket's configuration with one of the socket() methods; for example:

randolf::rsocket r; // Empty rsocket (empty / incomplete initialization)
r.debug(true);      // Enable debug mode
r.socket(...);      // Required to complete rsocket initialization

Notes

The built-in defaults, when not provided, are as follows ("family" is also known as the "communication domain"):

• family = AF_INET
• type = SOCK_STREAM
• protocol = PF_UNSPEC

You will need to use one of the socket(...) methods to specify socket details after defining rsocket objects with empty constructors so that you can catch runtime exceptions. (This also provides you with an option to enable debug mode during runtime prior to attempting to open an rsocket.)

Examples

#include <iostream> // std::cout, std::cerr, std::endl, etc.
#include <randolf/rex>
#include <randolf/rsocket>

randolf::rsocket r; //   <-- Empty rsocket initialization (no exceptions)

int main(int argc, char *argv[]) {
  try {
    r.socket(AF_INET, SOCK_STREAM, IPPROTO_TCP); //   <-- Required to complete rsocket initialization
    r.setsockopt(SOL_SOCKET, SO_REUSEADDR, true);
    // ... other socket I/O operations
    r.close();
  } catch (const randolf::rex::xALL e) {
    std::cerr << "Socket exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  } catch (const std::exception e) {
    std::cerr << "Other exception: " << e.what() << std::endl;
    return EXIT_FAILURE;
  }
  return EXIT_SUCCESS;
} // -x- int main -x-

See also

rsocket()

socket()

socket_family()

socket_fd()

socket_protocol()

socket_type()

Exceptions

randolf::rex::xEACCES	Elevated access is needed to open this socket
randolf::rex::xEAFNOSUPPORT	Address family not implemented/supported
randolf::rex::xEALREADY	If this socket() method was already used, or it was used after rsocket() initialized with at least one parameter
randolf::rex::xEINVAL	Protocal family invalid or not available
randolf::rex::xEINVAL	Invalid flags in type
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENFILE	System-wide maximum open files limit reached
randolf::rex::xENOBUFS	Insufficient memory
randolf::rex::xENOMEM	Insufficient memory
randolf::rex::xEPROTONOSUPPORT	Specified type or protocol is not supported within the specified family (a.k.a., communication domain)

Returns

The same rsocket object so as to facilitate stacking

See also

rsocket()

socket_family()

socket_fd()

socket_protocol()

socket_type()

Parameters

family	Communication domain; usually one of: AF_INET (IPv4) AF_INET6 (IPv6) AF_UNIX (UNIX domain sockets)
type	Communication semantics; usually one of: SOCK_STREAM (common for TCP) SOCK_DGRAM (common for UDP)
protocol	Network protocol; usually one of: IPPROTO_TCP IPPROTO_UDP IPPROTO_IP PF_UNSPEC (auto-detect)

socket_family()

const int randolf::rsocket::socket_family ( )

inlinenoexceptTLS

Get underlying socket family/domain constant (SO_DOMAIN).

Returns

socket family/domain constant

See also

port()

socket()

socket_fd()

socket_protocol()

socket_type()

socket_fd() [1/2]

const int randolf::rsocket::socket_fd ( )

inlinenoexceptTLS

Get underlying socket descriptor/handle.

Returns

socket descriptor/handle

0 = socket not yet allocated

See also

port()

socket()

socket_family()

socket_protocol()

socket_type()

socket_fd() [2/2]

rsocket * randolf::rsocket::socket_fd ( const int new_socket_fd )

inlineTLS

Set underlying socket descriptor/handle (to one that is presumed to be open).

Note

This method is only available while an underlying socket has not been created or previously assigned, such as after an empty rsocket instantiation.

Exceptions

randolf::rex::xEALREADY

If this socket_fd() method was already used, or it was used after socket() initialized it, or if rsocket() had initialized with at least one parameter that resulted in the creation of an underlying socket

Returns

The same rsocket object so as to facilitate stacking

See also

socket()

socket_family()

socket_protocol()

socket_type()

Parameters

new_socket_fd

New socket descriptor/handle

socket_protocol()

const int randolf::rsocket::socket_protocol ( )

inlinenoexceptTLS

Get underlying socket protocol constant (SO_PROTOCOL).

Returns

socket protocol constant

See also

port()

socket()

socket_family()

socket_fd()

socket_type()

socket_type()

const int randolf::rsocket::socket_type ( )

inlinenoexceptTLS

Get underlying socket type constant (SO_TYPE).

Returns

socket type constant

See also

port()

socket()

socket_family()

socket_fd()

socket_protocol()

sockatmark()

const bool randolf::rsocket::sockatmark ( )

inlinePOSIXTLS

Find out whether the underlying socket is at the out-of-band (OOB) mark.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEINVAL	The underlying socket file descriptor is not a type to which sockatmark() can be applied

Returns

TRUE = at OOB mark

FALSE = not at OOB mark

timeout() [1/3]

std::shared_ptr< timeval > randolf::rsocket::timeout ( )

inlineTLS

Find out what the read timeout is set to on the current socket.

Since getting the read timeout is such a common operation, this specialized method was created to ease software development efforts; internally we're just calling getsockopt_timeval(SOL_SOCKET, SO_RCVTIMEO).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

timeval socket option structure wrapped in std::shared_ptr

timeout() [2/3]

rsocket * randolf::rsocket::timeout ( const struct timeval tv )

inlineTLS

Set the recv timeout on the current socket.

Since setting the read timeout is such a common operation, this specialized method was created to ease software development efforts; internally we're just calling setsockopt(SOL_SOCKET, SO_RCVTIMEO, timeval).

Attention

Although a timeout of 100,000 microseconds (1/10 of one second) may suffice in healthy and efficient networks, a more conservative setting of 1 second tends to minimally yield more reliable results. Many end-user applications use defaults of 3 to 5 seconds to cover a wider variety of unpredictable network connections (such as over shared wireless connections that are slow), and this setting should ultimately be configurable by users/administrators.

Note

The default timeout for new sockets is normally 0 (no timeout).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

tv	timeval structure

timeout() [3/3]

rsocket * randolf::rsocket::timeout ( const int tv_sec = 0, const long tv_usec = 0 )

inlineTLS

Set the recv timeout on the current socket.

Since setting the read timeout is such a common operation, this specialized method was created to ease software development efforts; internally we're just calling setsockopt(SOL_SOCKET, SO_RCVTIMEO, timeval).

Attention

Although a timeout of 100,000 microseconds (1/10 of one second) may suffice in healthy and efficient networks, a more conservative setting of 1 second tends to minimally yield more reliable results. Many end-user applications use defaults of 3 to 5 seconds to cover a wider variety of unpredictable network connections (such as over shared wireless connections that are slow), and this setting should ultimately be configurable by users/administrators.

Note

The default timeout for new sockets is normally 0 (no timeout).

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEFAULT	Address structure/memory is not in a writable part of the user address space
randolf::rex::xEINVAL	Address length is incorrect, or address is not valid for this socket's family (a.k.a., communication domain)
randolf::rex::xENOPROTOOPT	Either the level or the specified optname is not supported
randolf::rex::xENOTSOCK	Underlying socket file descriptor (handle) doesn't refer to a socket

Returns

The same rsocket object so as to facilitate stacking

Parameters

tv	timeval structure

Parameters

tv_sec	Timeout in seconds
tv_usec	Timeout in microseconds

timeout_recvline() [1/2]

long randolf::rsocket::timeout_recvline ( )

inlineTLS

Find out what the read timeout is set to when using the recvline() method.

Returns

long value (0 = no timeout)

See also

recvline

timeout

timeout_recvline(long)

timeout_recvline() [2/2]

rsocket * randolf::rsocket::timeout_recvline ( const long timeout )

inlineTLS

Set the read timeout for the recvline() method (the recvline() method's timeout parameter can override this setting).

Note

The default timeout for this recvline_timeout setting is 0 (no timeout).

Exceptions

randolf::rex::xERANGE

if the timeout parameter is below 0

Returns

The same rsocket object so as to facilitate stacking

See also

recvline

timeout

timeout_recvline

Parameters

timeout

timeval structure

tls()

rsocket * randolf::rsocket::tls ( const bool status = true, const int flags = TLS_FLAGS::TLS_DEFAULT )

inlineTLS

Enable or disable encrypted communications (from the OpenSSL library).

Warning

TLS cannot be enabled before a non-encrypted rsocket is open (an rsocket is typically opened with the socket() method, the connect() method, or one of the accept() methods). If calling tls(true) on an rsocket that isn't open, an exception will be thrown.

If needed, a new TLS context will be instantiated and TLS will be initialized (if this hasn't already been done). TLS instantiation can be done first by calling the tls_ctx() method (regardless of whether encryption is being enabled or disabled). If the default TLS_FLAGS aren't sufficient for the needs of your application, then the tls_ctx() method facilitates this regardless of wehther rsocket is open.

Note

The reason a TLS context is instantiated and TLS is initialized even when the status is being set to FALSE is to facilitate TLS ingress from an unencrypted connection later in the session (see the TLS_NO_INGRESS flag for more information).

Postcondition

If a client attempts to upgrade a TLS connection to TLS (e.g., by using a command such as STARTTLS, which is commonly transmitted in unencrypted form, like telnet-ssl does – using telnet-ssl -z ssl prevents this condition), the following error that's difficult to track down may be triggered when calling any of the recv methods (I hope that including this information here in this documentation will be helpful):

SSL_ERROR_UNKNOWN: error:0A00010B:SSL routines::wrong version number

This is most likely not a programming error, but rather a problem with how users may attempt to mis-use a connection based on a misunderstanding of the communications requirements (e.g., connecting unencrypted and attempting to upgrade to TLS over a connection that's expecting TLS encrypted data from the very beginning, without involving any ingress).

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

is_tls

tls_ctx

Parameters

status	TRUE = Enable encrypted communications FALSE = Disable encrypted communications
flags	Configuration parameters

tls_ctx() [1/3]

SSL_CTX * randolf::rsocket::tls_ctx ( )

inlinenoexceptTLS

Return the current TLS context (multiple TLS contexts are supported, although typically needed to support SNI with inbound connections).

Returns

Pointer to OpenSSL's context (normally labelled SSL_CTX* in the documentation for OpenSSL), or nullptr if this context was never assigned to (or created by) this rsocket

See also

tls_ctx

tls_ctx() [2/3]

rsocket * randolf::rsocket::tls_ctx ( rsocket * rtemplate, const int flags = TLS_FLAGS::TLS_DEFAULT )

inlineTLS

Copy the source rsocket's TLS context map and add it to this rsocket's collection; or, if the source doesn't have any TLS contexts and this rsocket doesn't have any TLS contexts in its collection, then initialize TLS and instantiate a new TLS context. In either scenario, the source rsocket will be treated as a template as all TLS flags duplicated to enable encrypted socket I/O for use in this rsocket().

Note

At least one TLS context is needed to enable encrypted socket I/O for use in this rsocket().

Postcondition

Encrypted socket I/O is only possible after a TLS context has been initialized (this is not a global setting as it has per-rsocket specificity).

Note

The only TLS_FLAGS flag that doesn't get transferred is TLS_SERVER when no flags are specified. Specifying any flag(s) will cause this method to ignore the source rsocket's TLS flags so as to defer to this override.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_sni

Parameters

rtemplate	OpenSSL's TLS context to use (if not provided, a new context will be created automatically using OpenSSL's defaults)
flags	Configuration parameters

tls_ctx() [3/3]

rsocket * randolf::rsocket::tls_ctx ( SSL_CTX * ctx, const int flags = TLS_FLAGS::TLS_DEFAULT )

inlineTLS

Initialize TLS and instantiate a TLS context, and add it to this rsocket's current collection of TLS contexts, and set it as the currently active TLS context (so that a certificate chain and private key may be added to it).

Note

At least one TLS context is needed to enable encrypted socket I/O for use in this rsocket().

Postcondition

Encrypted socket I/O is only possible after a TLS context has been initialized (this is not a global setting as it has per-rsocket specificity).

Note

This is the default TLS context for this rsocket, which will also be used for non-SNI handshakes.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_sni

Parameters

ctx	OpenSSL's TLS context to use (if not provided, a new context will be created using OpenSSL's defaults)
flags	Configuration parameters

tls_ctx_check_privatekey()

rsocket * randolf::rsocket::tls_ctx_check_privatekey ( )

inlineTLS

Check the private key it to ensure it's consistent with the corresponding TLS certificate chain.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_privatekey_file

tls_ctx_use_privatekey_pem

tls_ctx_use_certificate_chain_and_privatekey_files() [1/2]

rsocket * randolf::rsocket::tls_ctx_use_certificate_chain_and_privatekey_files ( const char * chain_file, const char * key_file )

inlineTLS

Load a TLS certificate chain and private key in PEM format from text files and use them in the TLS context.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_certificate_chain_and_privatekey_pems

tls_ctx_use_certificate_chain_file

tls_ctx_use_certificate_chain_pem

tls_ctx_use_privatekey_file

tls_ctx_use_privatekey_pem

tls_ctx_check_privatekey

Parameters

chain_file	Pointer to ASCIIZ path and filename to certificate chain file (nullptr will simply be ignored)
key_file	Pointer to ASCIIZ path and filename to private key file (nullptr will simply be ignored)

tls_ctx_use_certificate_chain_and_privatekey_files() [2/2]

rsocket * randolf::rsocket::tls_ctx_use_certificate_chain_and_privatekey_files ( const std::string chain_file, const std::string key_file )

inlineTLS

Load a TLS certificate chain and private key in PEM format from text files and use them in the TLS context.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_certificate_chain_and_privatekey_pems

tls_ctx_use_certificate_chain_file

tls_ctx_use_certificate_chain_pem

tls_ctx_use_privatekey_file

tls_ctx_use_privatekey_pem

tls_ctx_check_privatekey

Parameters

chain_file	Pointer to ASCIIZ path and filename to certificate chain file (an empty string will simply be ignored)
key_file	Pointer to ASCIIZ path and filename to private key file (an empty string will simply be ignored)

tls_ctx_use_certificate_chain_and_privatekey_pems()

rsocket * randolf::rsocket::tls_ctx_use_certificate_chain_and_privatekey_pems ( const char * cert_pem_data, const char * key_pem_data, size_t cert_len = 0, size_t key_len = 0, const bool random_fill = true )

inlineTLS

Load a TLS certificate chain and a TLS private key in PEM format from memory and use them in the TLS context.

Although this functionality doesn't exist in OpenSSL (at the time of writing this method), it's provided here in a manner that has exactly the same effect as the tls_ctx_use_certificate_chain_and_privatekey_files() methods, but without needing the PEM-formatted certificate chain stored in files beforehand.

Note

The cert_pem_data and key_pem_data parameters are pointers to the memory locations that holds the PEM formatted certificate chain data and private key data, respectively. If the corresponding lengths of each of these data aren't specified or are set to zero (default), then they will be treated as multiline ASCIIZ strings.

Behind the scenes, we're just writing the cert_pem_data and key_pem_data memory to temporary files with severely-limited permissions (), then optionally overwriting those temporary files with random data prior to deleting them (this is the default, since better security practices should be the default, but on a secured system it may not be necessary and so this option can also be disabled to save CPU cycles and reduce overall disk-write I/O operations).

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_certificate_chain_and_privatekey_files

tls_ctx_use_certificate_chain_file

tls_ctx_use_certificate_chain_pem

tls_ctx_use_privatekey_file

tls_ctx_use_privatekey_pem

tls_ctx_check_privatekey

Parameters

cert_pem_data	Pointer to certificate chain data in PEM format
key_pem_data	Pointer to private key data in PEM format
cert_len	Length of cert_pem_data (in bytes), or 0 to auto-detect length if cert_pem_data is an ASCIIZ string
key_len	Length of key_pem_data (in bytes), or 0 to auto-detect length if key_pem_data is an ASCIIZ string
random_fill	Whether to overwrite the temporary files with random data before deleting them

tls_ctx_use_certificate_chain_file() [1/2]

rsocket * randolf::rsocket::tls_ctx_use_certificate_chain_file ( const char * file )

inlineTLS

Load a TLS certificate chain in PEM format from a text file and use it in the TLS context.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_certificate_chain_file

tls_ctx_use_certificate_chain_pem

tls_ctx_check_privatekey

Parameters

file	Pointer to ASCIIZ path and filename to certificate chain file

tls_ctx_use_certificate_chain_file() [2/2]

rsocket * randolf::rsocket::tls_ctx_use_certificate_chain_file ( const std::string file )

inlineTLS

Load a TLS certificate chain in PEM format from a text file and use it in the TLS context.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_certificate_chain_file

tls_ctx_use_certificate_chain_pem

tls_ctx_check_privatekey

Parameters

file	Path and filename to certificate chain file

tls_ctx_use_certificate_chain_pem()

rsocket * randolf::rsocket::tls_ctx_use_certificate_chain_pem ( const char * pem_data, size_t len = 0, const bool random_fill = true )

inlineTLS

Load a TLS certificate chain in PEM format from memory and use it in the TLS context.

Although this functionality doesn't exist in OpenSSL (at the time of writing this method), it's provided here in a manner that has exactly the same effect as the tls_ctx_use_certificate_chain_file() methods, but without needing the PEM-formatted certificate chain stored in a file beforehand.

Note

The pem_data parameter is a pointer to the memory location that holds the PEM formatted certificate chain data. If the length of this data isn't specified or is set to zero (default), then it will be treated as a multiline ASCIIZ string.

Behind the scenes, we're just writing the pem_data memory to a temporary file with severely-limited permissions (), then optionally overwriting that temporary file with random data prior to deleting it (this is the default, since better security practices should be the default, but on a secured system it may not be necessary and so this option can also be disabled to save CPU cycles and reduce overall disk-write I/O operations).

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_certificate_chain_file

tls_ctx_check_privatekey

Parameters

pem_data	Pointer to certificate chain data in PEM format
len	Length of pem_data (in bytes), or 0 to auto-detect length if pem_data is an ASCIIZ string
random_fill	Whether to overwrite the temporary file with random data before deleting it

tls_ctx_use_privatekey_file() [1/2]

rsocket * randolf::rsocket::tls_ctx_use_privatekey_file ( const char * file )

inlineTLS

Load a TLS private key in PEM format from a text file and use it in the TLS context.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_privatekey_file

tls_ctx_use_privatekey_pem

tls_ctx_check_privatekey

Parameters

file	Pointer to ASCIIZ path-and-filename of private key file

tls_ctx_use_privatekey_file() [2/2]

rsocket * randolf::rsocket::tls_ctx_use_privatekey_file ( const std::string file )

inlineTLS

Load a TLS private key in PEM format from a text file and use it in the TLS context.

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_privatekey_file

tls_ctx_use_privatekey_pem

tls_ctx_check_privatekey

Parameters

file	Path and filename to private key file

tls_ctx_use_privatekey_pem()

rsocket * randolf::rsocket::tls_ctx_use_privatekey_pem ( const char * pem_data, size_t len = 0, const bool random_fill = true )

inlineTLS

Load a TLS private key in PEM format from memory and use it in the TLS context.

Although this functionality doesn't exist in OpenSSL (at the time of writing this method), it's provided here in a manner that has exactly the same effect as the tls_ctx_use_privatekey_file() methods, but without needing the PEM-formatted private key stored in a file beforehand.

Note

The pem_data parameter is a pointer to the memory location that holds the PEM formatted private key data. If the length of this data isn't specified or is set to zero (default), then it will be treated as a multiline ASCIIZ string.

Behind the scenes, we're just writing the pem_data memory to a temporary file (with severely-limited permissions), then optionally overwriting that temporary file with random data prior to deleting it (this is the default, since better security practices should be the default, but on a secured system it may not be necessary and so this option can also be disabled to save CPU cycles and reduce overall disk-write I/O operations).

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

tls_ctx_use_privatekey_file

tls_ctx_check_privatekey

Parameters

pem_data	Pointer to private key data in PEM format
len	Length of pem_data (in bytes), or 0 to auto-detect length if pem_data is an ASCIIZ string
random_fill	Whether to overwrite the temporary file with random data before deleting it

tls_do_handshake()

rsocket * randolf::rsocket::tls_do_handshake ( )

inlineTLS

Initiate the TLS handshake with the endpoint (which is presumed to be a server). This method makes it easier to support application-level commands such as STARTTLS (which are implemented in protocols like SMTP, POP3, IMAP4, MEOW, FTP, NNTP, LDAP, XMPP, etc.).

Exceptions

randolf::rex::xALL

Catch this exception for now (at this time, the OpenSSL library doesn't document which errors may be returned)

Returns

The same rsocket object so as to facilitate stacking

See also

connect()

connect(std::string, int)

TLS_NO_INGRESS

tls_fd()

const SSL * randolf::rsocket::tls_fd ( )

inlinenoexceptTLS

Get OpenSSL's TLS structure.

Returns

TLS structure

nullptr = TLS structure not yet allocated

tls_sni() [1/2]

rsocket_sni * randolf::rsocket::tls_sni ( )

inlinenoexceptTLS

Return the current rsocket_sni object that this rsocket will use when accepting incoming encrypted connections.

Returns

Pointer to rsocket_sni object

nullptr = SNI is not assigned

See also

name_sni

tls_sni(rsocket_sni*)

tls_sni() [2/2]

rsocket * randolf::rsocket::tls_sni ( rsocket_sni * sni )

inlinenoexceptTLS

Set the current rsocket_sni object that this rsocket will use when accepting incoming encrypted connections.

Use the name() method to find out which server name was supplied by the endpoint that triggered the SNI callback, regardless of whether it matches any of the TLS certificates used with this rsocket object or the rsocket_sni object that's associated with this rsocket object. If an SNI callback wasn't triggered, or if the endpoint didn't provide a server name, then it will remain unaffected (and the default {empty string} will remain unchanged).

Returns

The same rsocket object so as to facilitate stacking

See also

name_sni

tls_sni

is_tls_sni_match

Parameters

sni	Pointer to the rsocket_sni object to use, or specify nullptr to remove SNI support from this rsocket object

to_mac()

static std::string randolf::rsocket::to_mac ( const void * addr )

inlinestaticnoexceptTLS

Convert a 48-bit integer to a machine address in the form of xx:xx:xx:xx:xx:xx where every instance of xx is a hexadecimal representation of each respective 8-bit byte portion.

This method is needed because we don't want to bring in the heavy fmt::format class as a dependency.

Returns

Mac address as 17-character in the typical format expected by system administrators

Parameters

addr	Pointer to 48-bit integer

to_node()

static std::string randolf::rsocket::to_node ( const void * addr )

inlinestaticnoexceptTLS

Convert a 48-bit integer to a node address in the form of xxxx:xxxx:xxxx where every instance of xxxx is a hexadecimal representation of each respective 16-bit word portion.

This method is needed because we don't want to bring in the heavy fmt::format class as a dependency.

Returns

Node address as 14-character in the typical format expected by network administrators

Parameters

addr	Pointer to 48-bit integer

vprintf()

rsocket * randolf::rsocket::vprintf ( const char * format, va_list args )

inlinePOSIXTLS

Send a formatted string to the rsocket endpoint.

The format is described in the documentation for the POSIX or Standard C Library printf() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEILSEQ	An invalid wide-character code was detected
randolf::rex::xEOVERFLOW	The value returned is greater than {INT_MAX}
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENOMEM	Insufficient memory

Returns

The same rsocket object so as to facilitate stacking

See also

eol_fix_printf

is_eol_fix_printf

net_io

printf

printfline

vprintfline

Parameters

format	Format string to use
args	Variadic arguments in va_list format

vprintfline()

rsocket * randolf::rsocket::vprintfline ( const char * format, va_list args )

inlineTLS

Send a formatted string to the rsocket endpoint, and append an EoL sequence.

The format is described in the documentation for the POSIX or Standard C Library printf() function.

Exceptions

randolf::rex::xEBADF	The underlying socket is not open
randolf::rex::xEILSEQ	An invalid wide-character code was detected
randolf::rex::xEOVERFLOW	The value returned is greater than {INT_MAX}
randolf::rex::xEMFILE	Per-process maximum open files limit reached
randolf::rex::xENOMEM	Insufficient memory

Returns

The same rsocket object so as to facilitate stacking

See also

eol

eol_fix_printf

is_eol_fix_printf

net_io

printf

printfline

sendline

vprintf

Parameters

format	Format string to use
args	Variadic arguments in va_list format

---

The documentation for this class was generated from the following file:

• randolf/rsocket
